Main bathroom shower pan

I cut the concrete for a stepless shower, and get the niches, lamps, & medicine cabinets delivered. pdf version
The main bath has this goofy sunken tub built into the concrete slab. I had to square off the corner by cutting into the floor a couple inches down. Then I looked long and and hard at my CAD drawing, and realized that if the pan was three inches wider, then the studs and niches and and shower heads would work out better. The real plus is that it will be easier to span the 3/4-inch gap around the long edge. The raised tiled section is sitting on cinder blocks that make the deck of the tub. I did say it was goofy. With the wider cut I can bridge that gap with a piece of steel or cement board or something to give the pan some structure. While doing this, I got in a lot of items, the shower niches, the vanity lamps, the LED medicine cabinets, and the FlowFX drain, thanks to the Tile Coach.
Bottom of first columnmove down to the left

2022-05-16_Main-bath-shower-pan_02

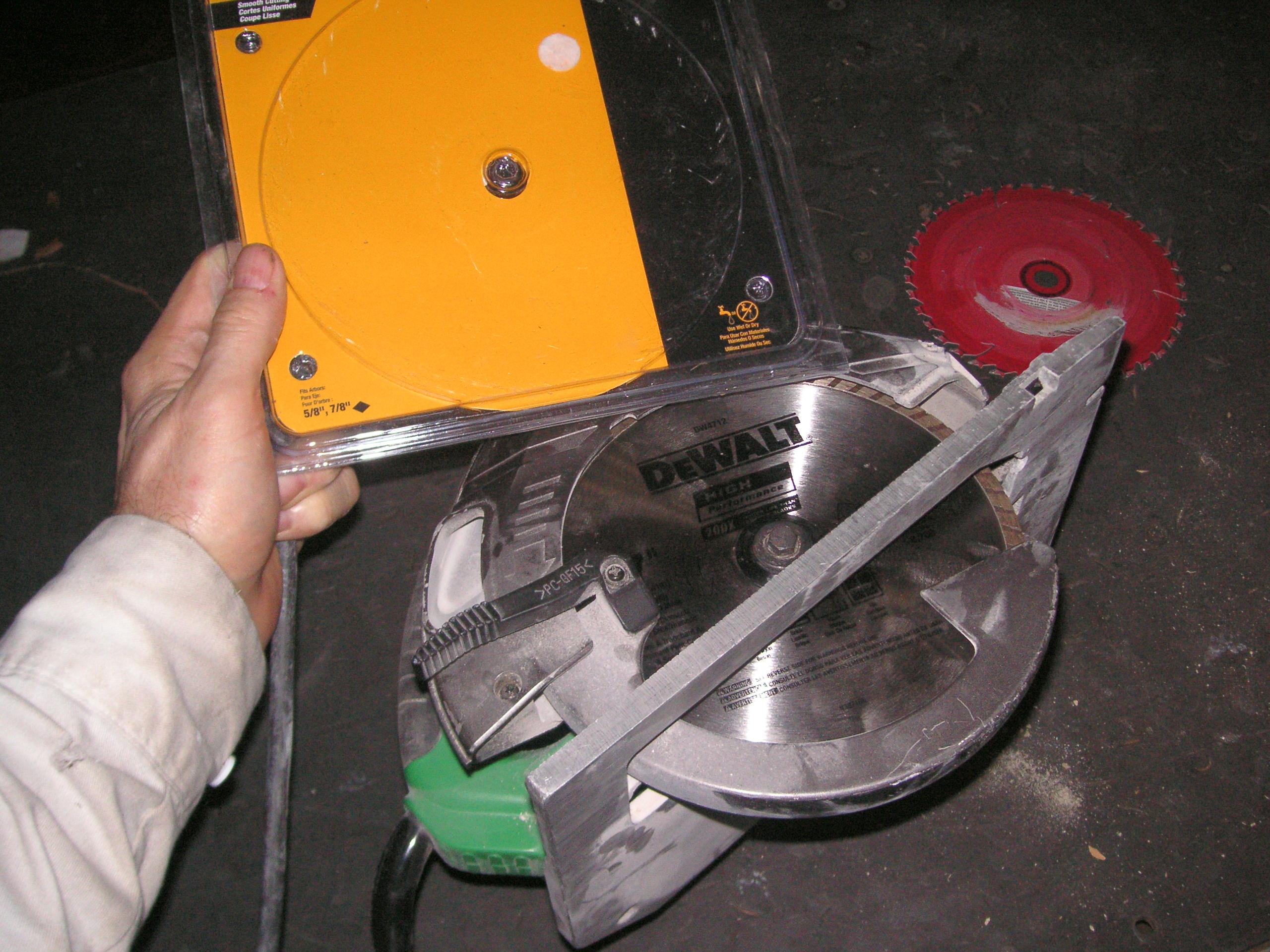

I ordered two diamond saw blades on Amazon,. This cheapo DeWalt 7-inch blade came in first.
2022-05-16_Main-bath-shower-pan_03

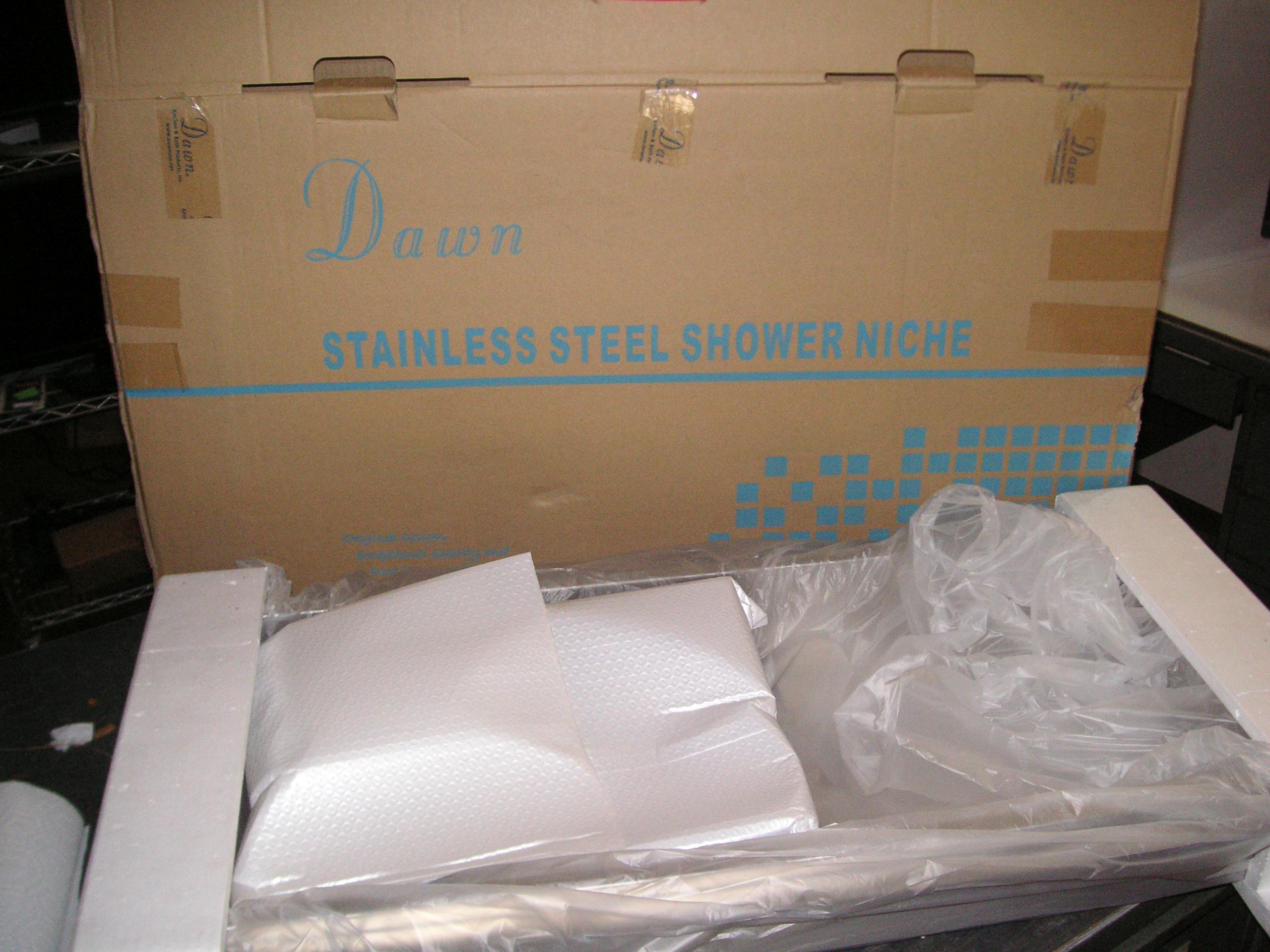

Before I could start cutting, the Dawn 32x14-inch stainless steel shower niches came.
2022-05-16_Main-bath-shower-pan_04

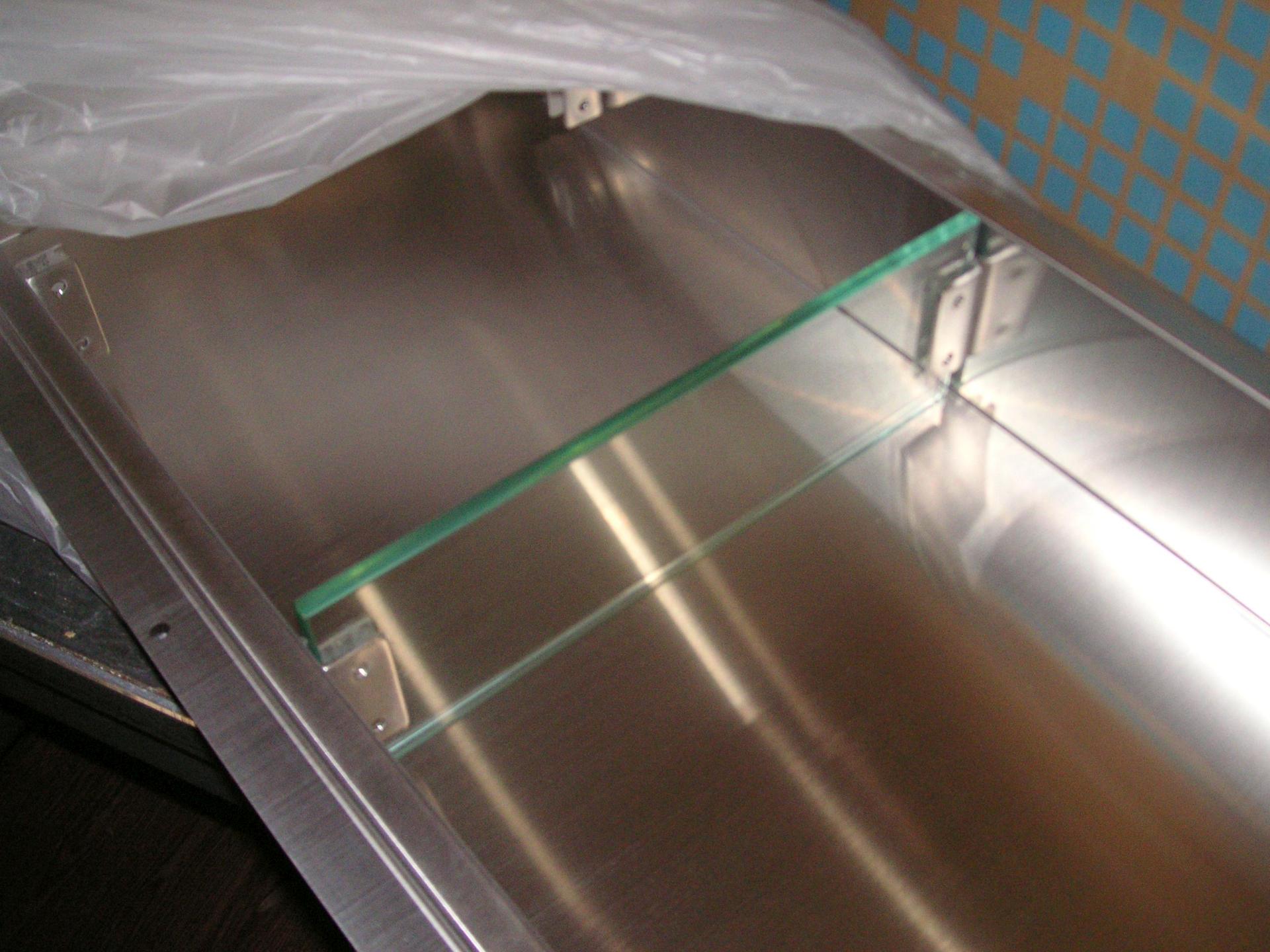

I got a pair of them on amazon. This will be a dual shower, so husband and wife have each.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_05

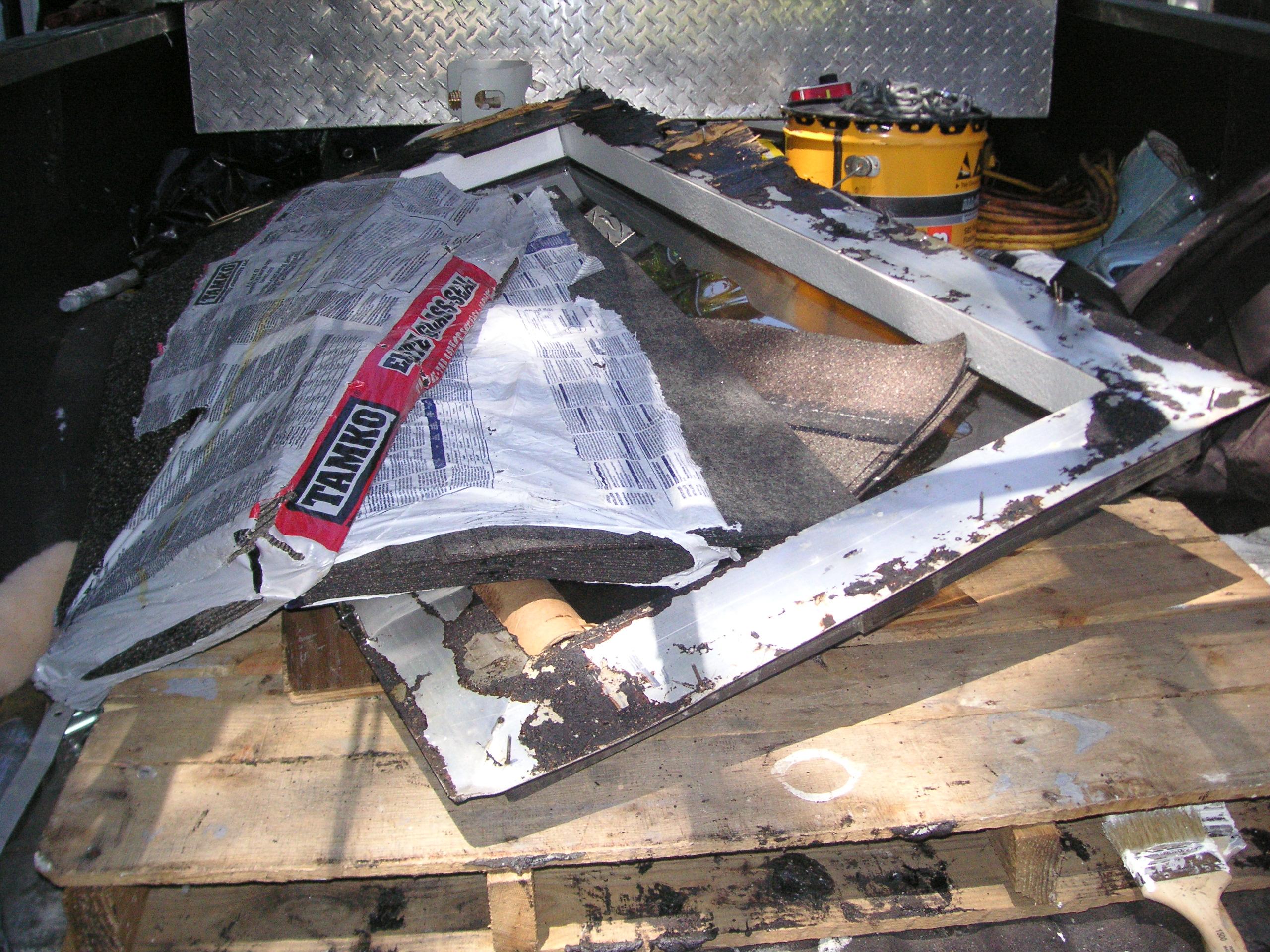

Another interruption was the roofers came to replace the leaky skylight in the kitchen.
2022-05-16_Main-bath-shower-pan_06
They installed a Sun-Tek brand. It is clear, unlike the old faded skylight.
2022-05-16_Main-bath-shower-pan_07
The shower niches came in redundant Amazon boxes, I kept the Dawn boxes just in case.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_08

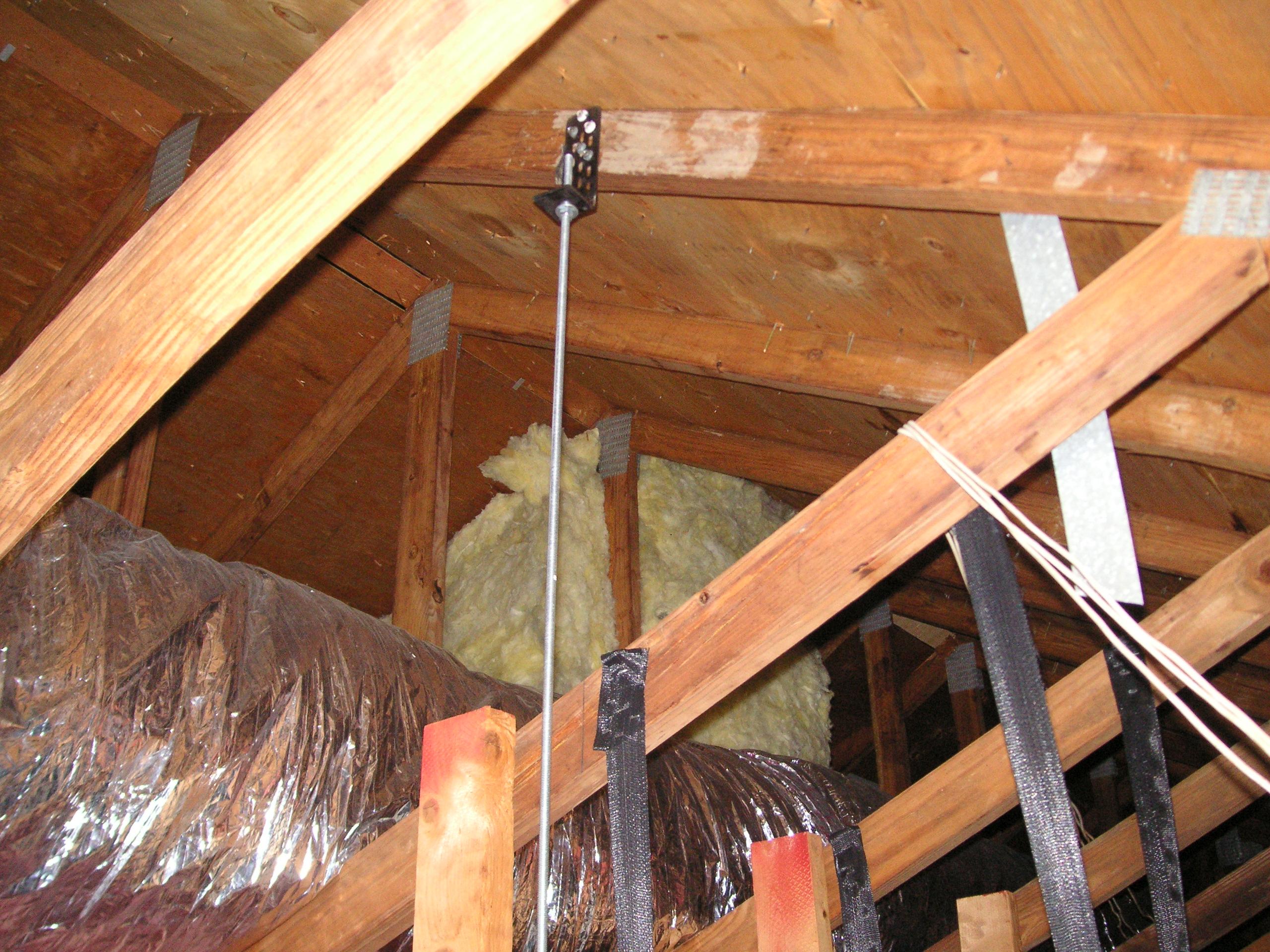

Sure enough, the rains came a day later, and sure enough, Bill Shields roofing fixed the leak.
2022-05-16_Main-bath-shower-pan_09

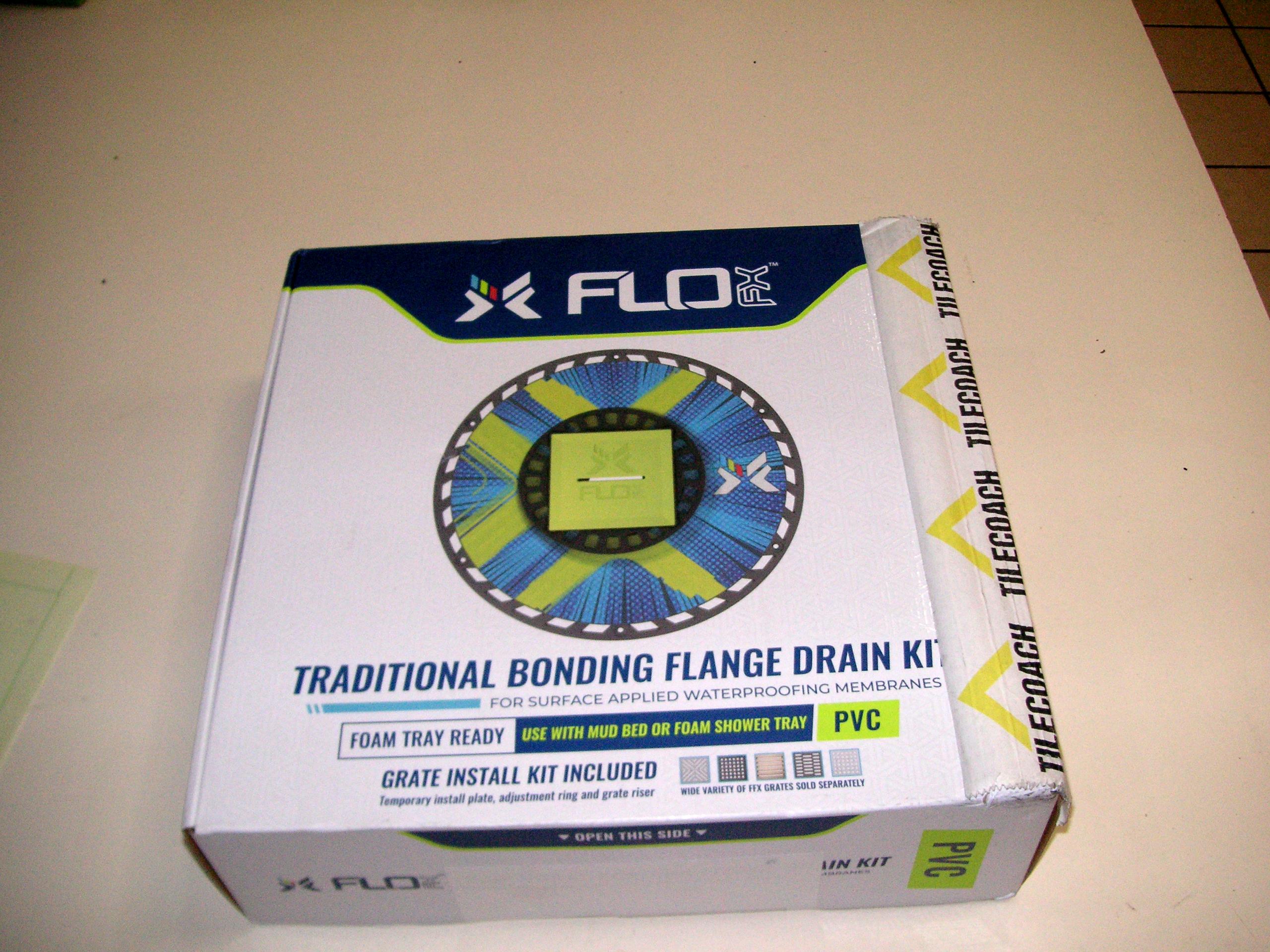

The Flo-FX bonded shower drain showed up as well, thanks to tilecoach.com.
2022-05-16_Main-bath-shower-pan_10

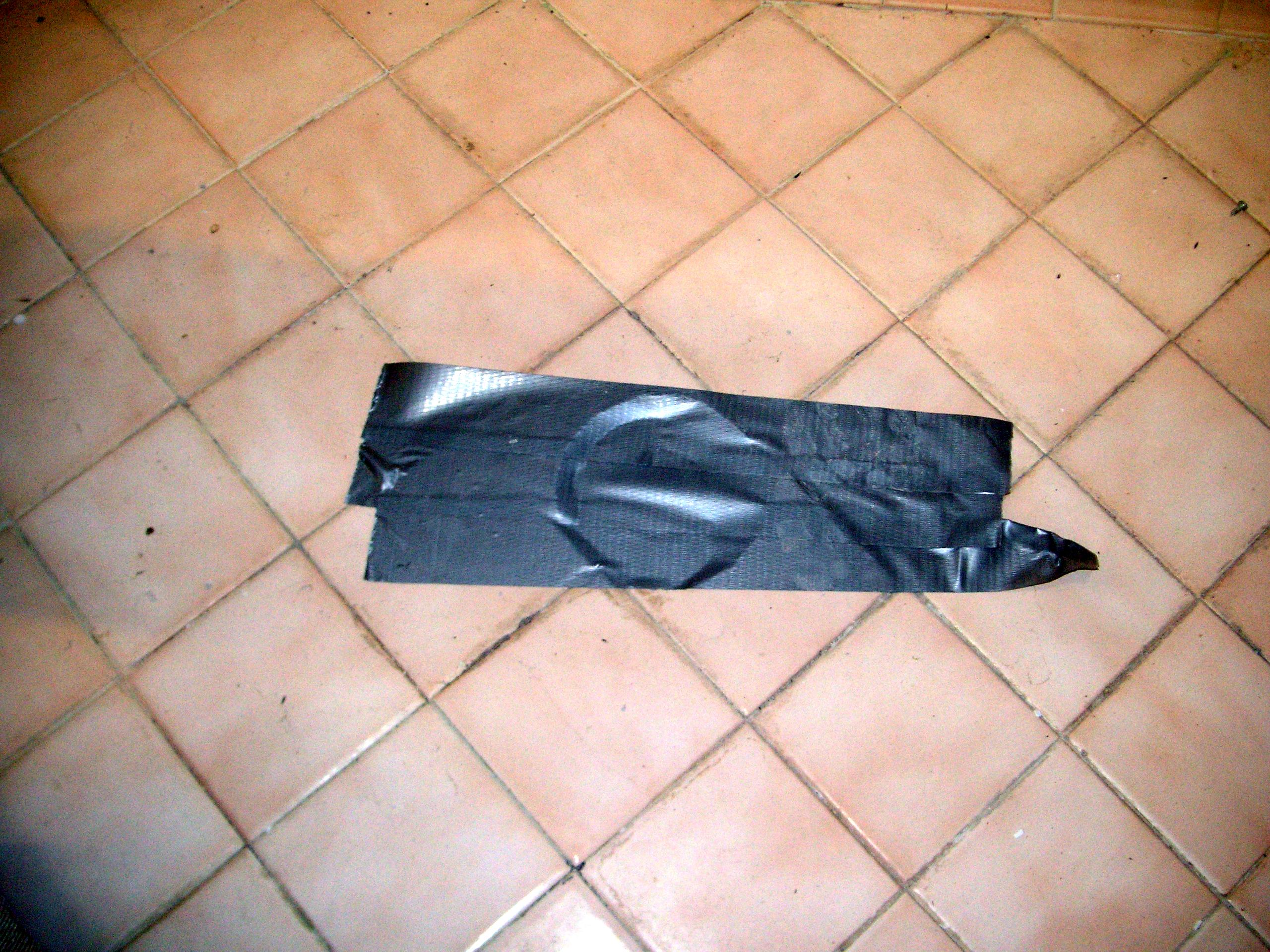

OK time to start the job. I tape off the bathtub drain. I don't want it full of concrete chips.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_11

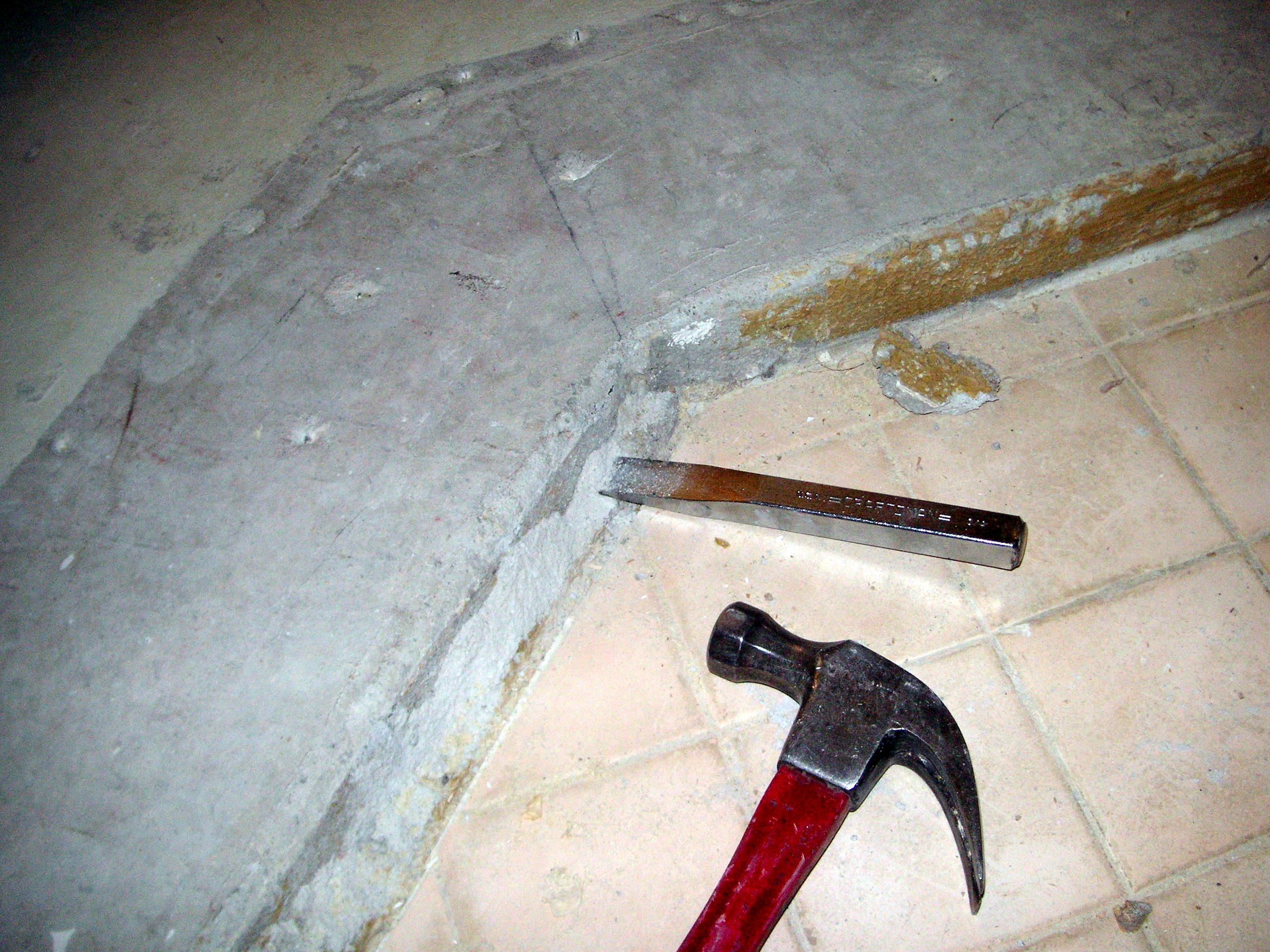

I had to chip off some thinset mortar. This was a waste, as I had to cut past this edge later.
2022-05-16_Main-bath-shower-pan_12

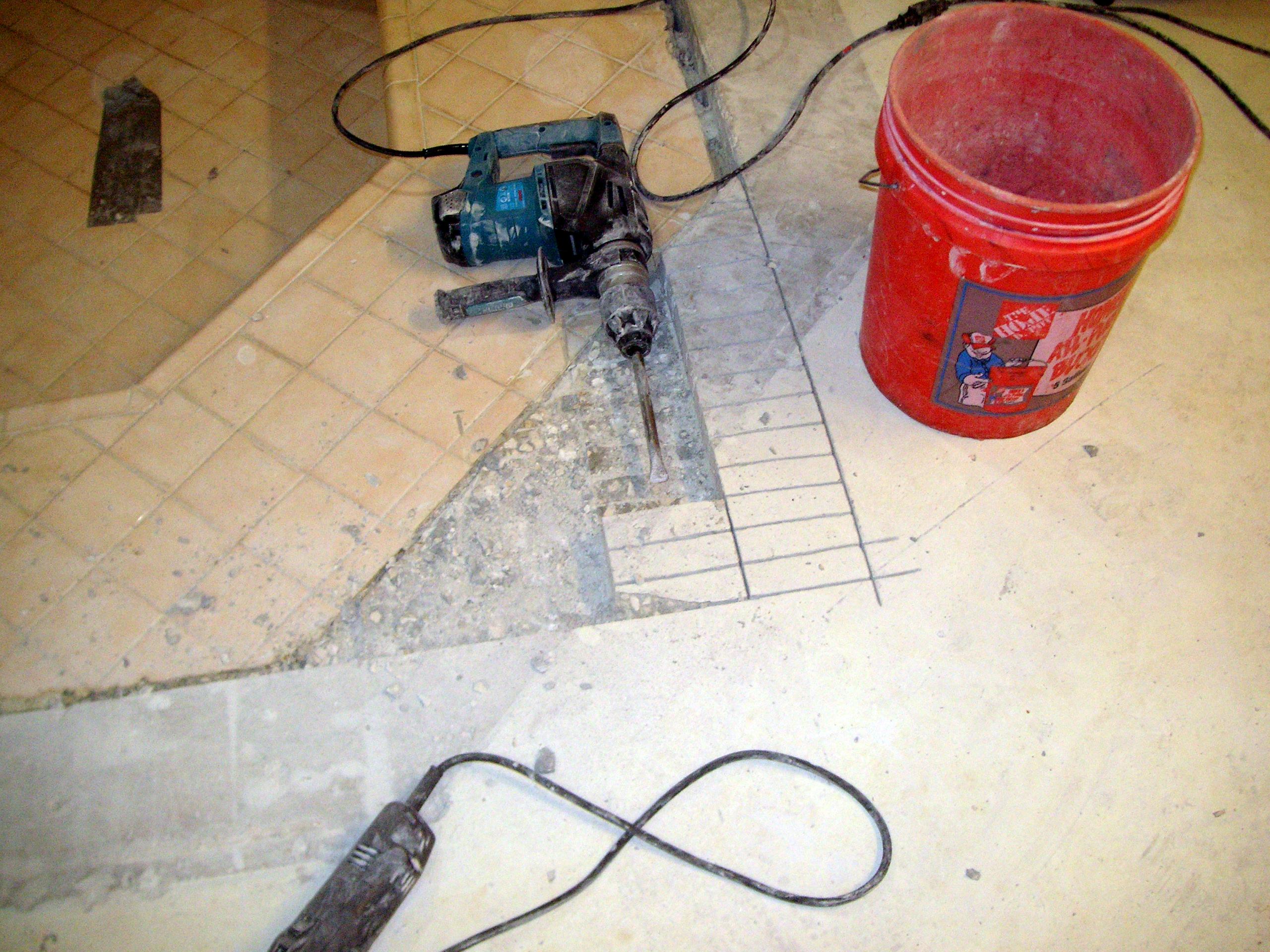

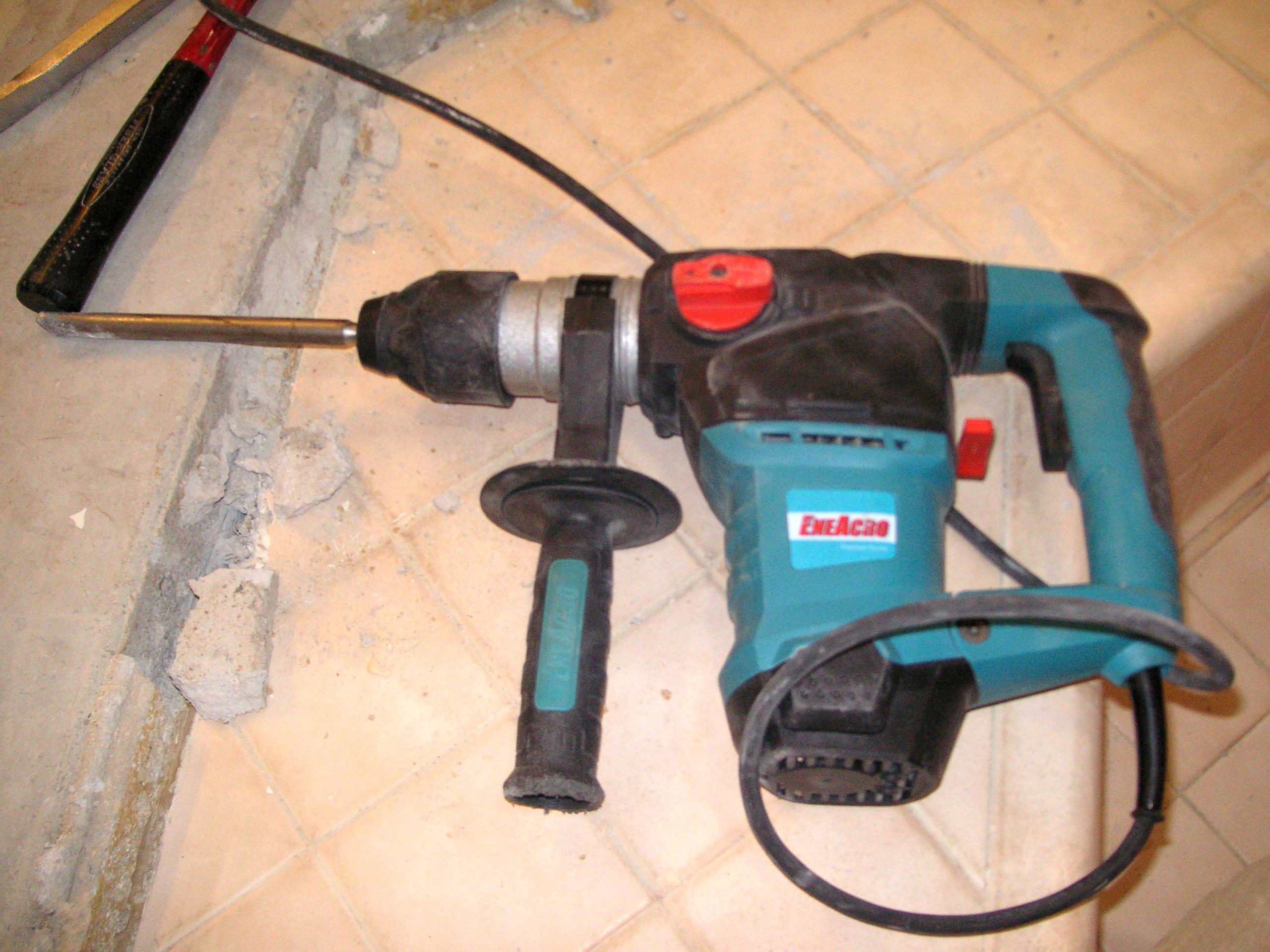

This 120-dollar rotary hammer worked better than a hammer and chisel, Amazon purchase.
2022-05-16_Main-bath-shower-pan_13

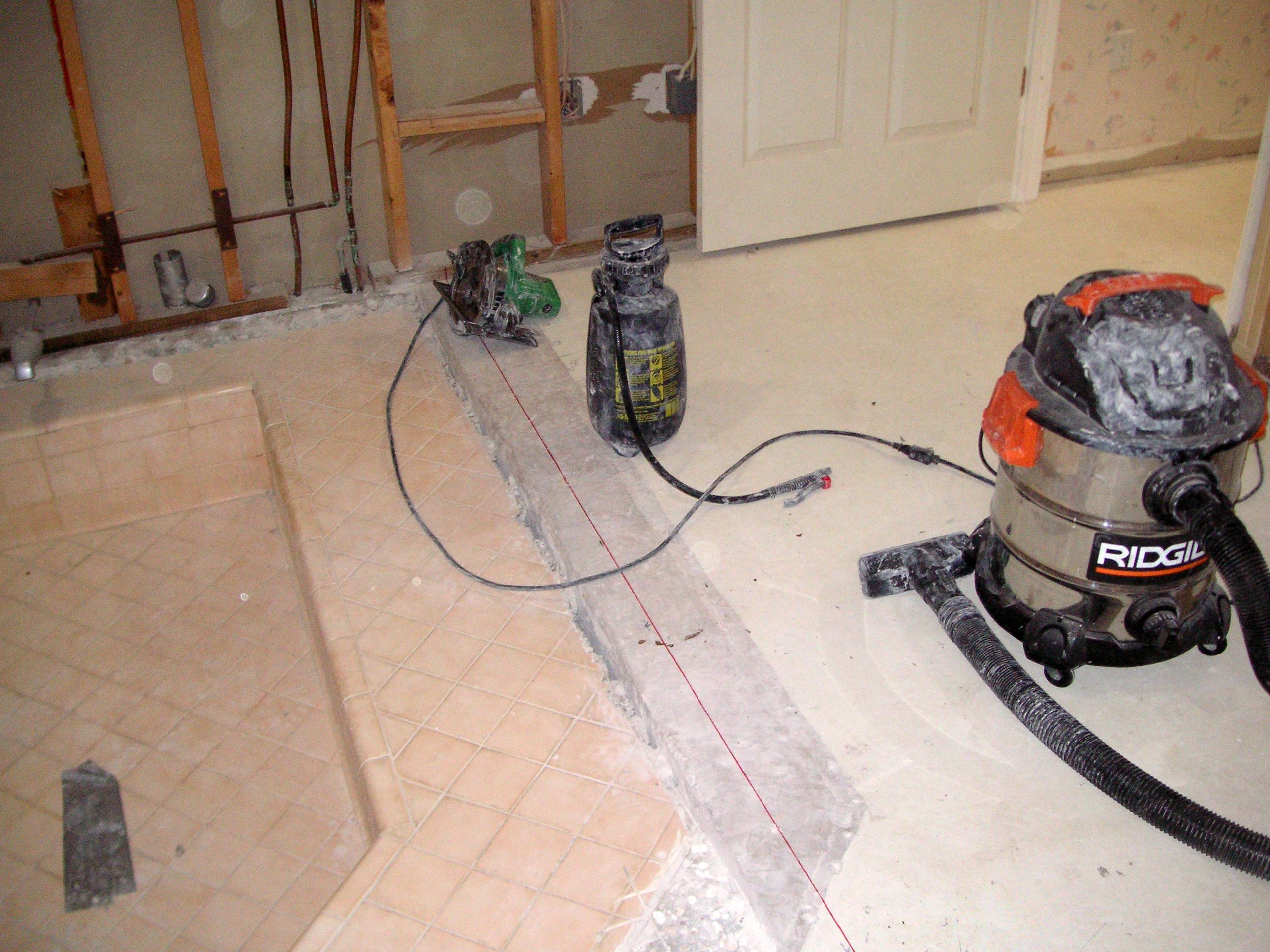

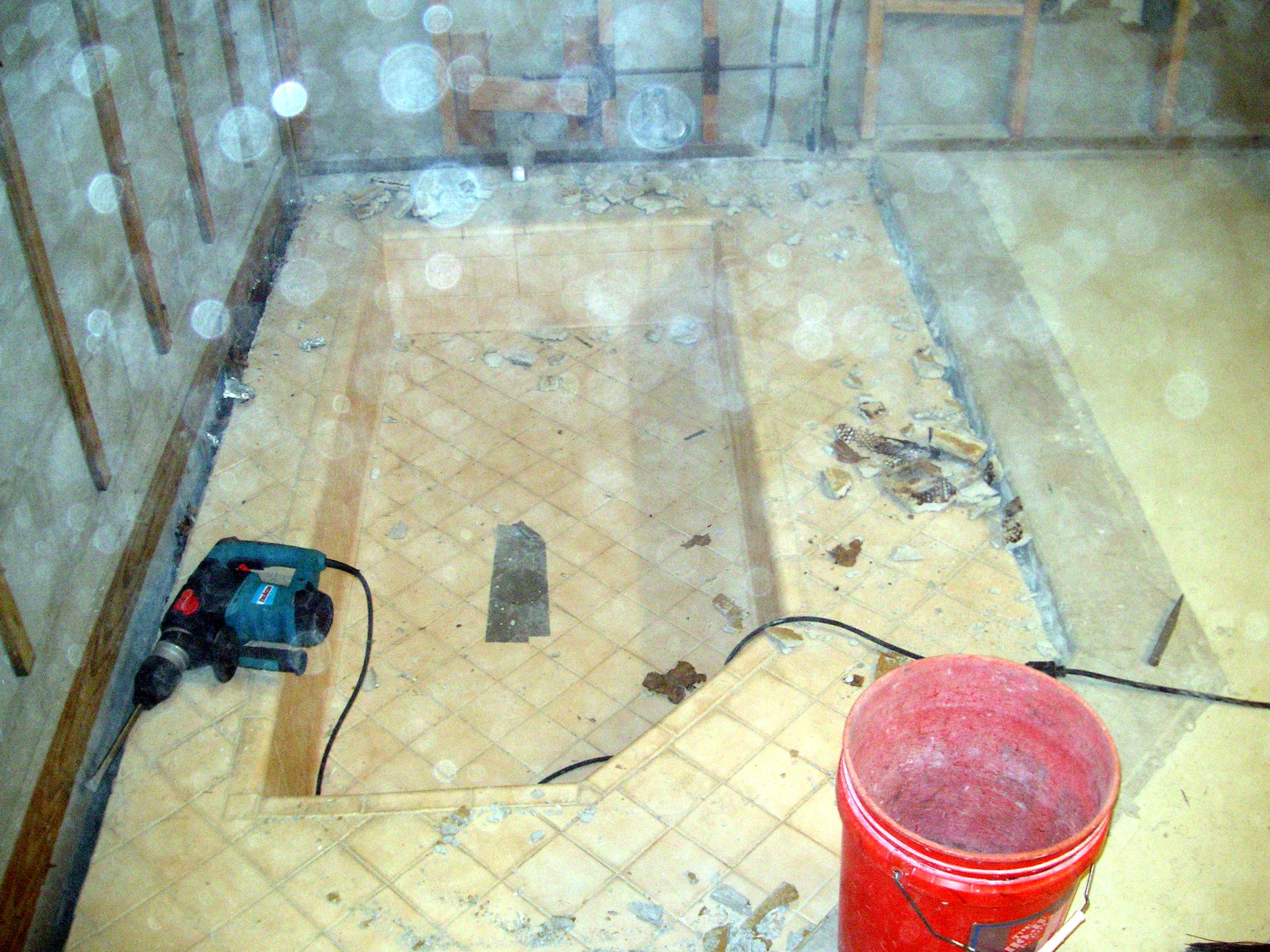

The edging is removed around the tub. The right edge will be widened later.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_14

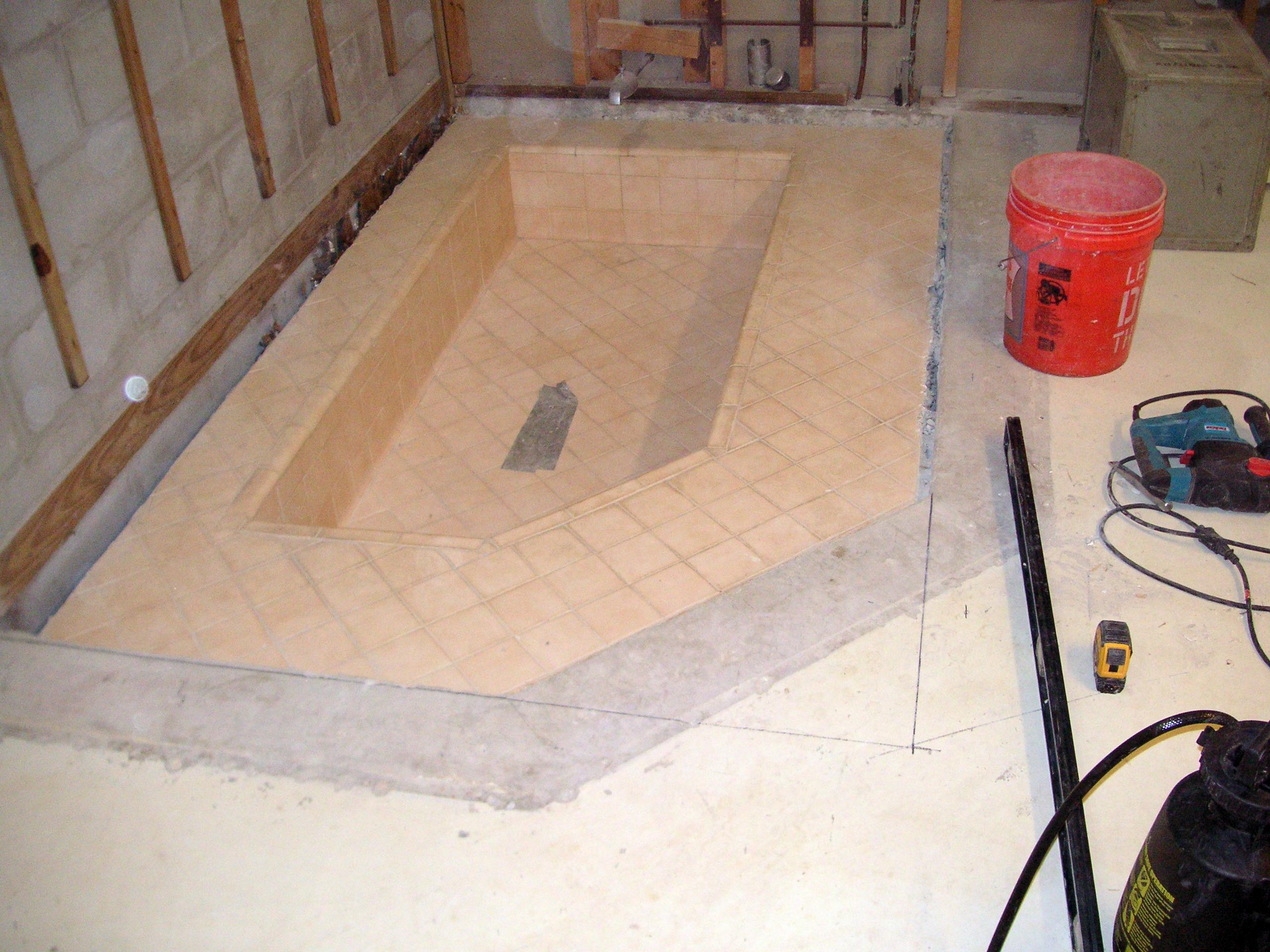

I measured from the exterior wall to square off the recess. Later I used the laser level.
2022-05-16_Main-bath-shower-pan_15

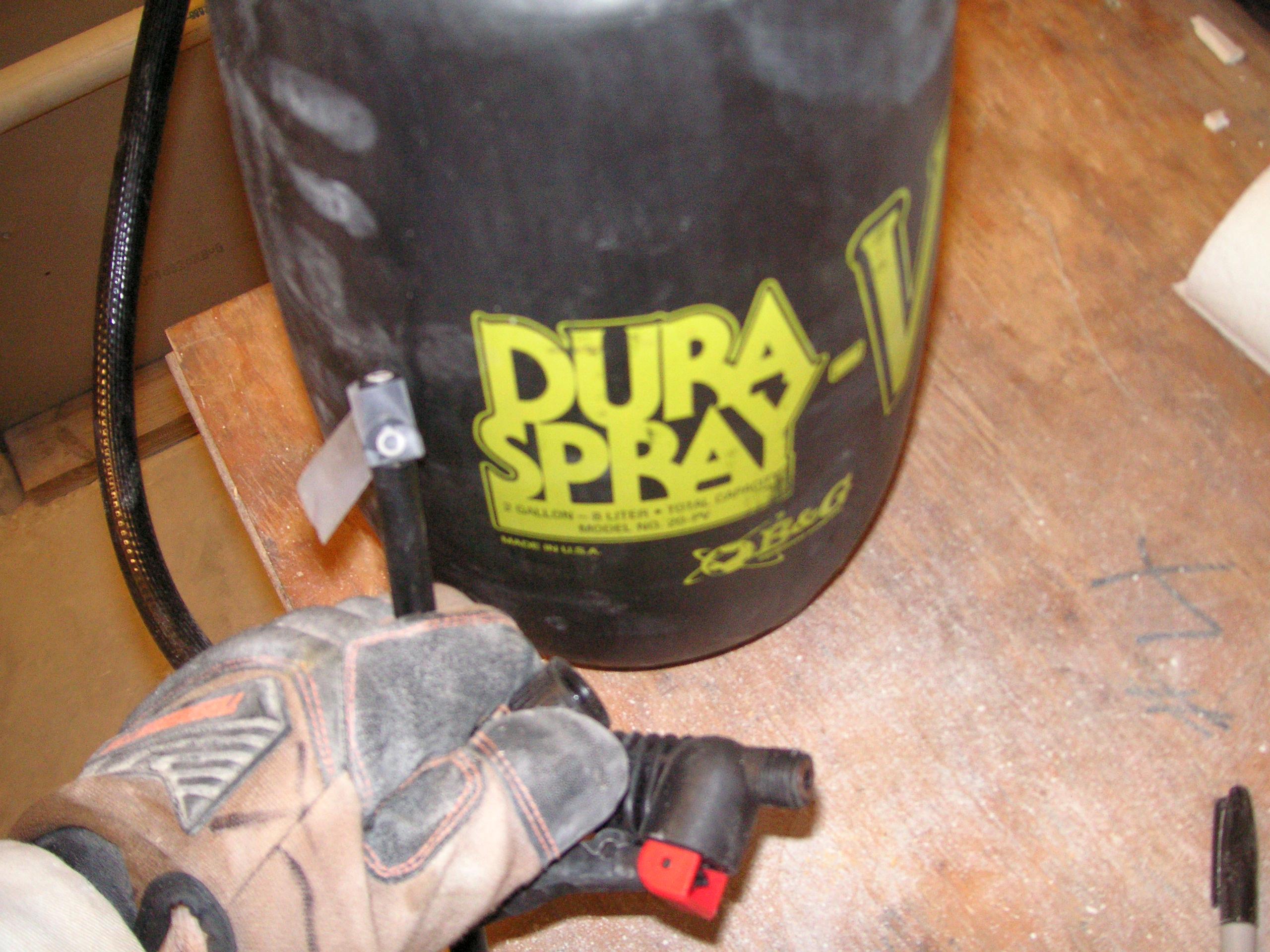

Cutting concrete dry makes too much dust. I used this broken garden sprayer to flood water.
2022-05-16_Main-bath-shower-pan_16

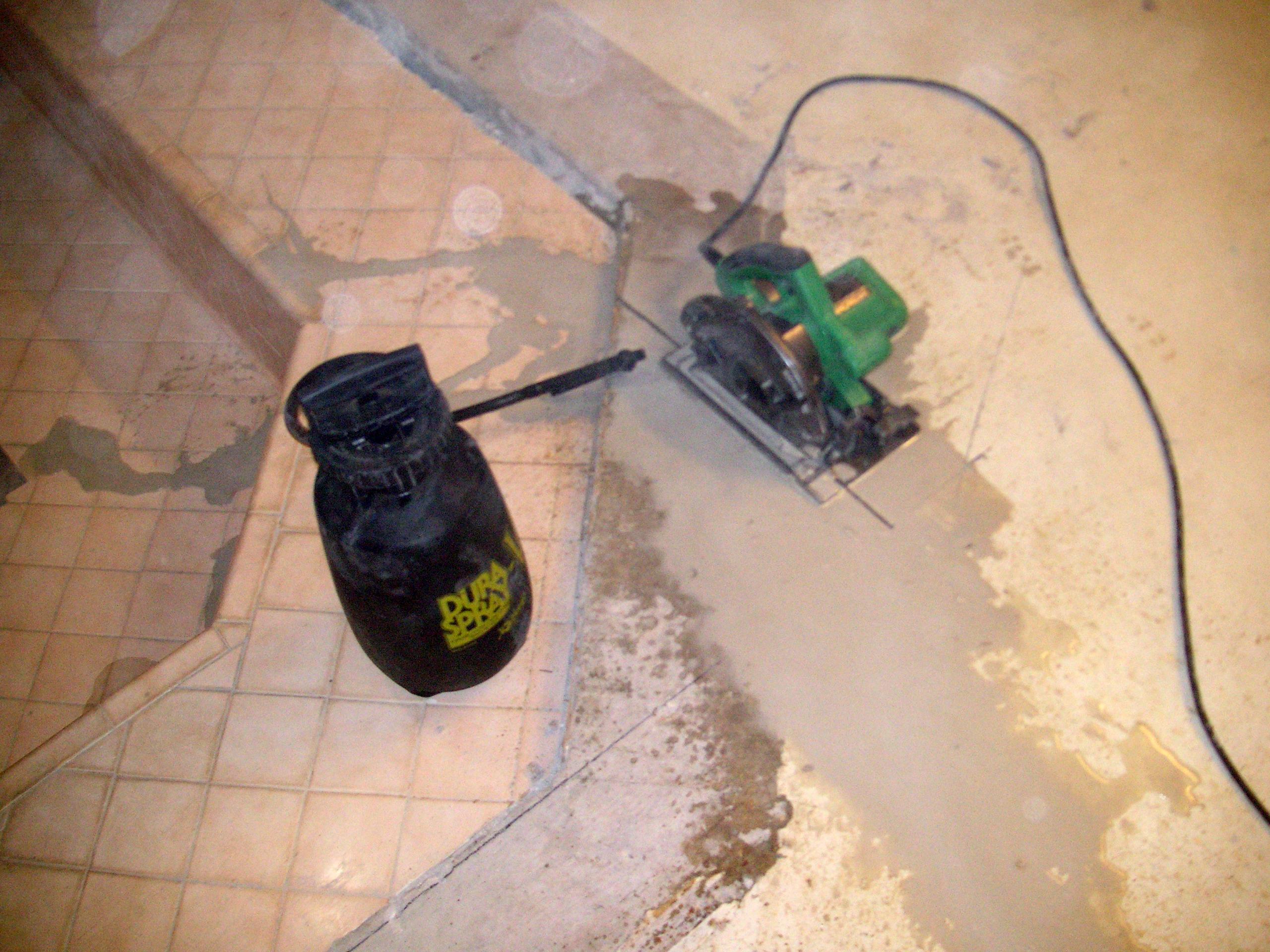

The DeWalt blade did well in my Hitachi circular saw. Surface finish was great.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_17

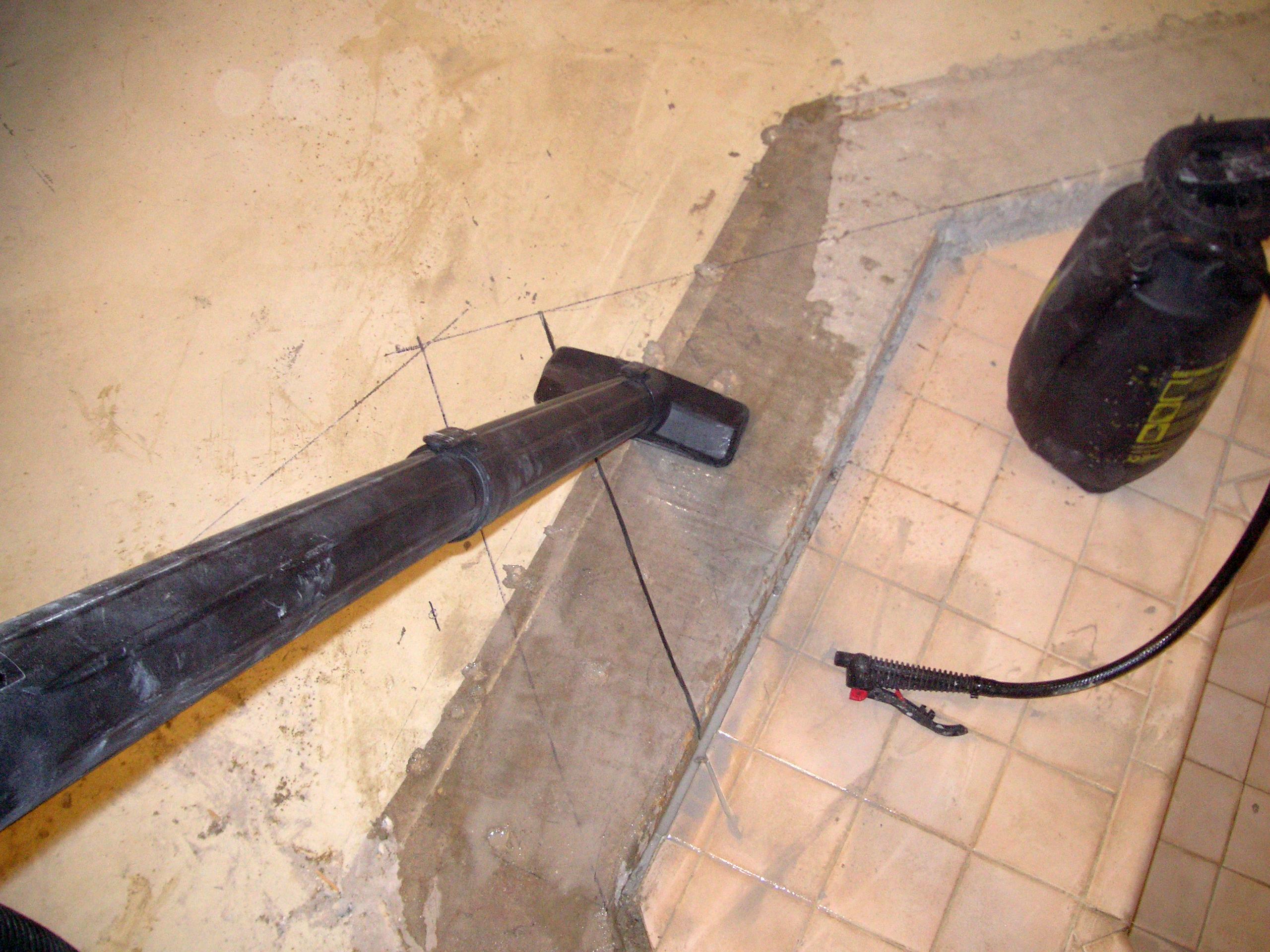

I periodically vacuumed up the water with my shop vac. The dust was minimal.
2022-05-16_Main-bath-shower-pan_18

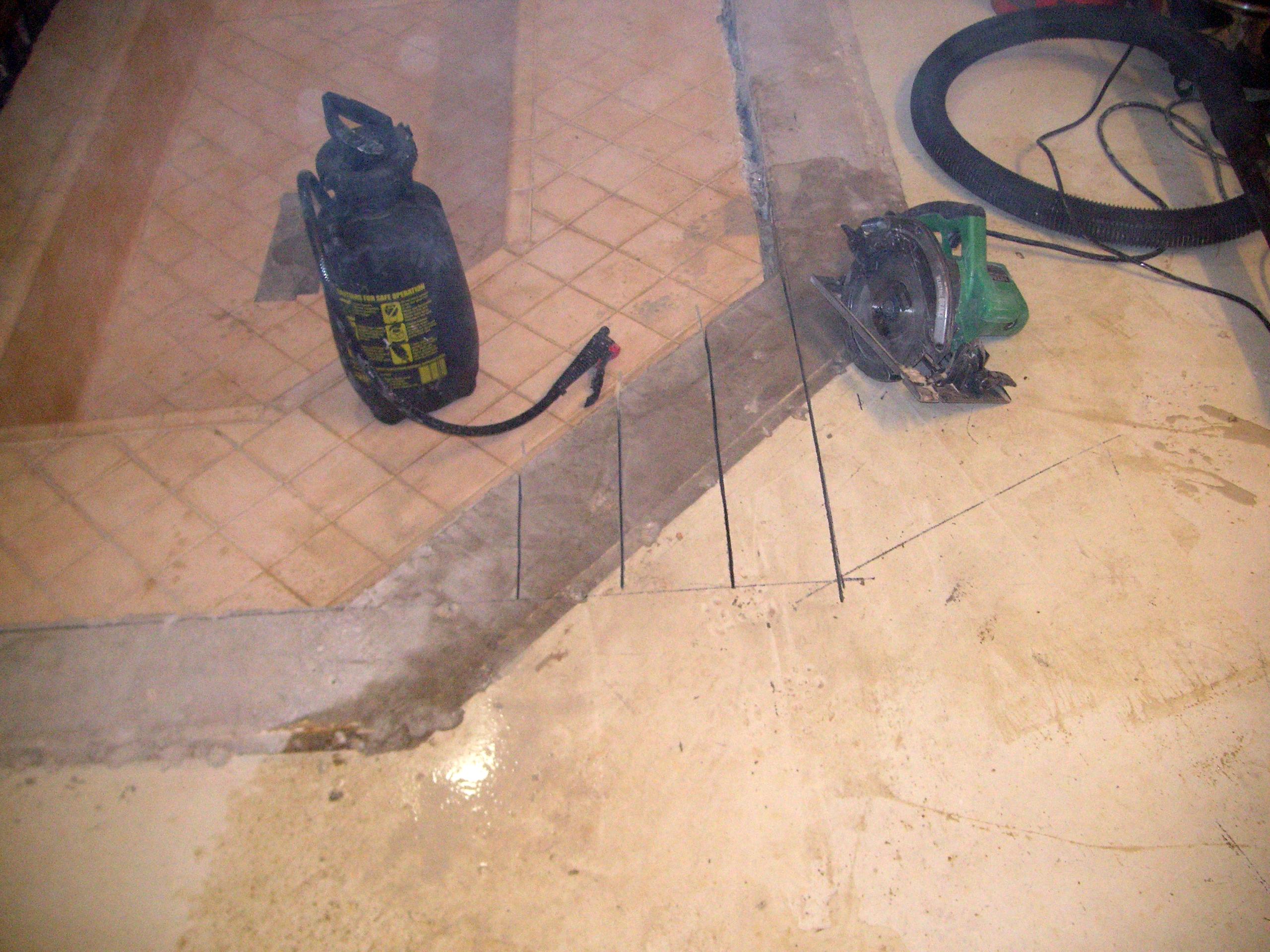

I've got a horizontal cut and those four vertical cuts done.
2022-05-16_Main-bath-shower-pan_19

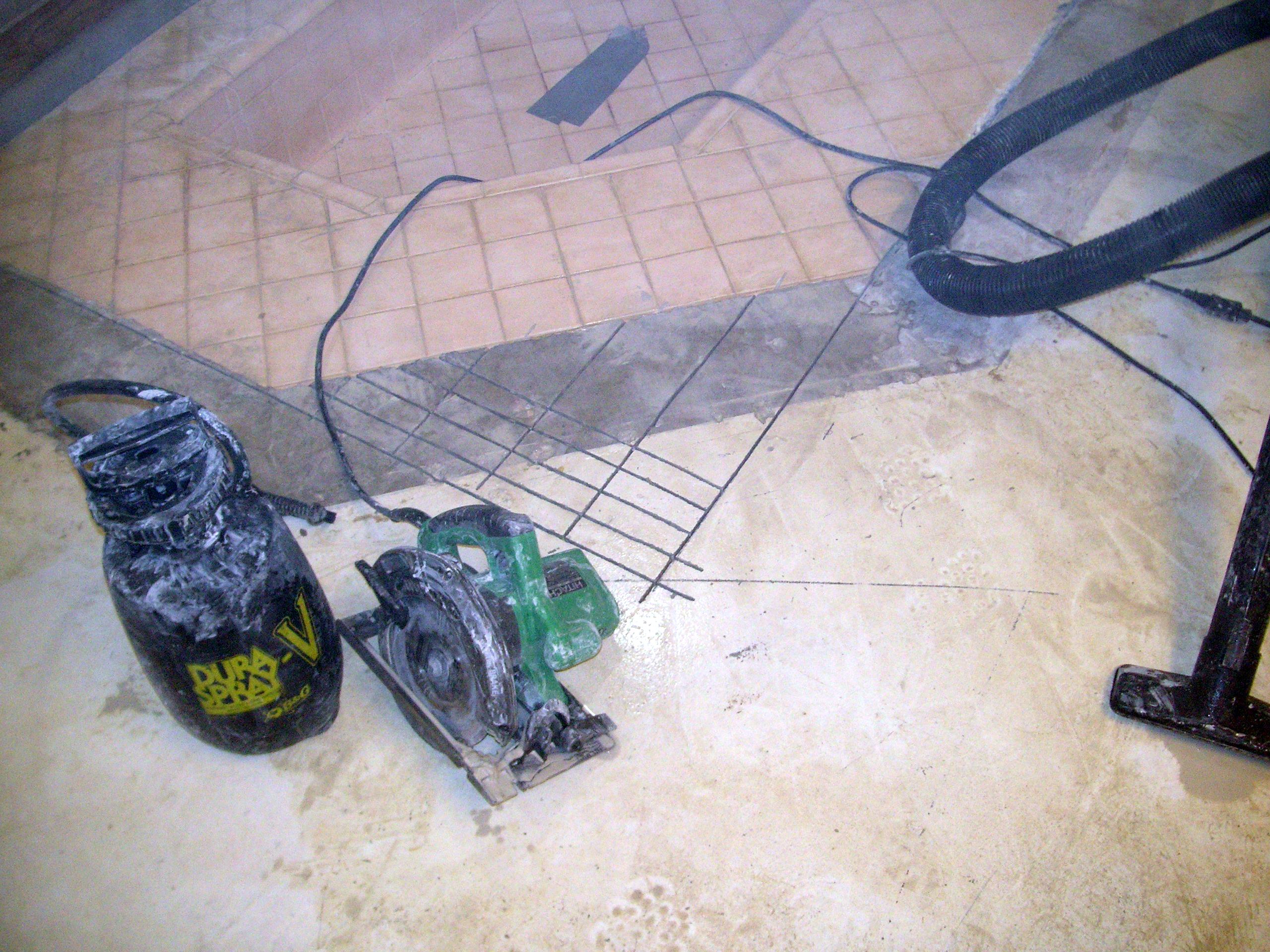

Then I used the short side of the saw deck as a guide, and cut the other way in tight blocks.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_20

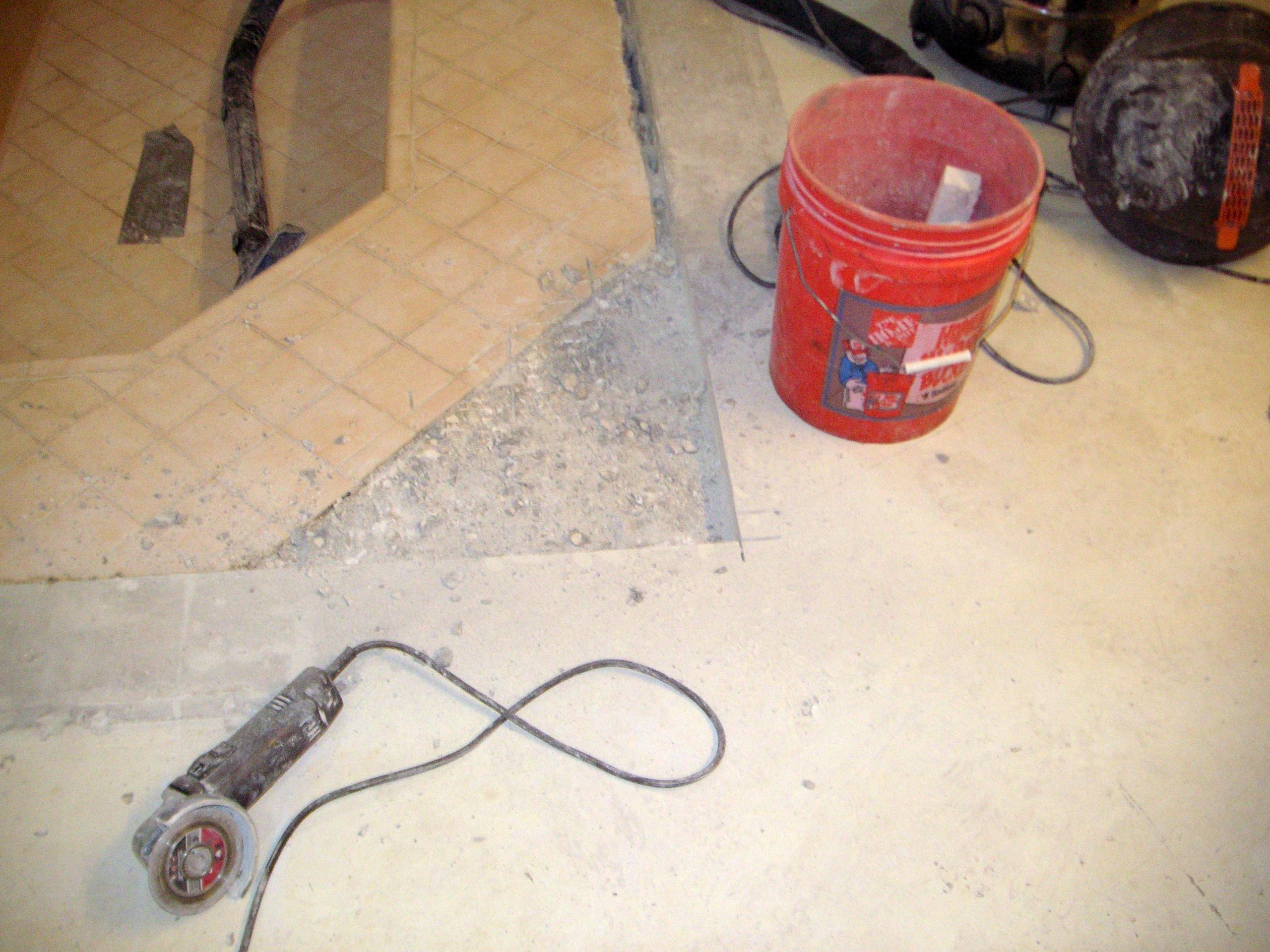

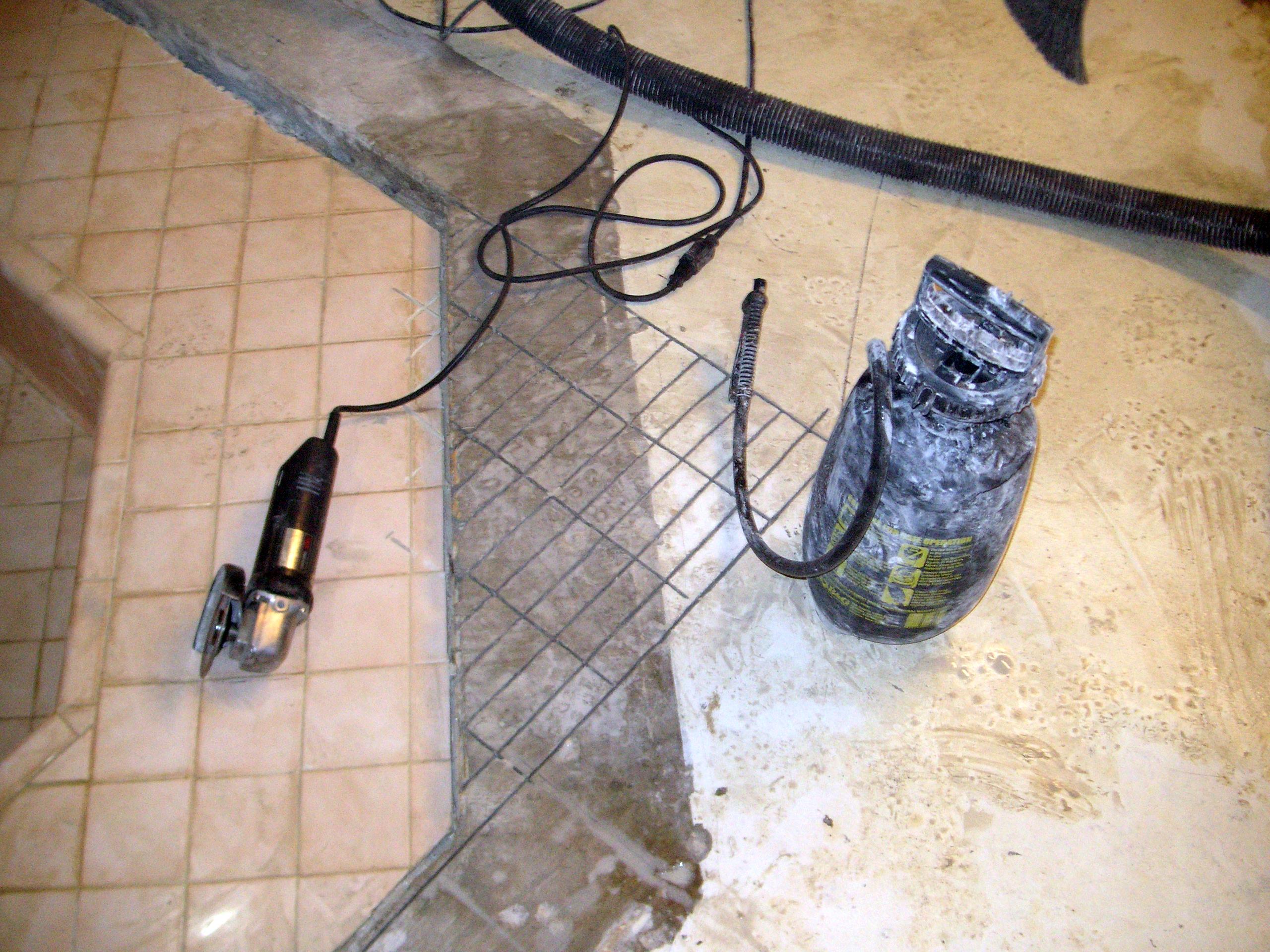

I used a 4-inch grinder with a diamond blade to undercut the blocks where I could reach them.
2022-05-16_Main-bath-shower-pan_21

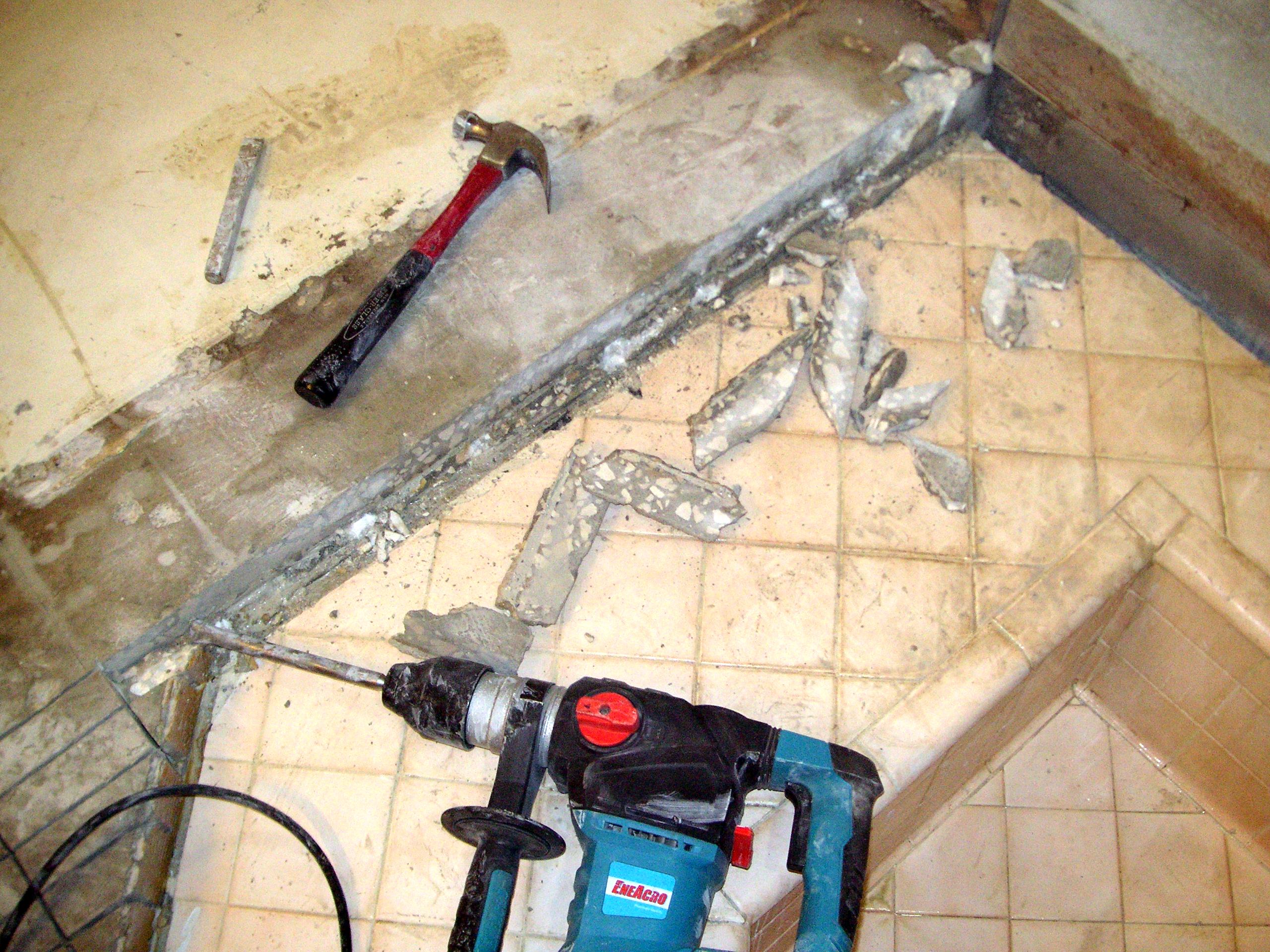

The rotary hammer popped out the chunks easily. It went way better than I expected.
2022-05-16_Main-bath-shower-pan_22

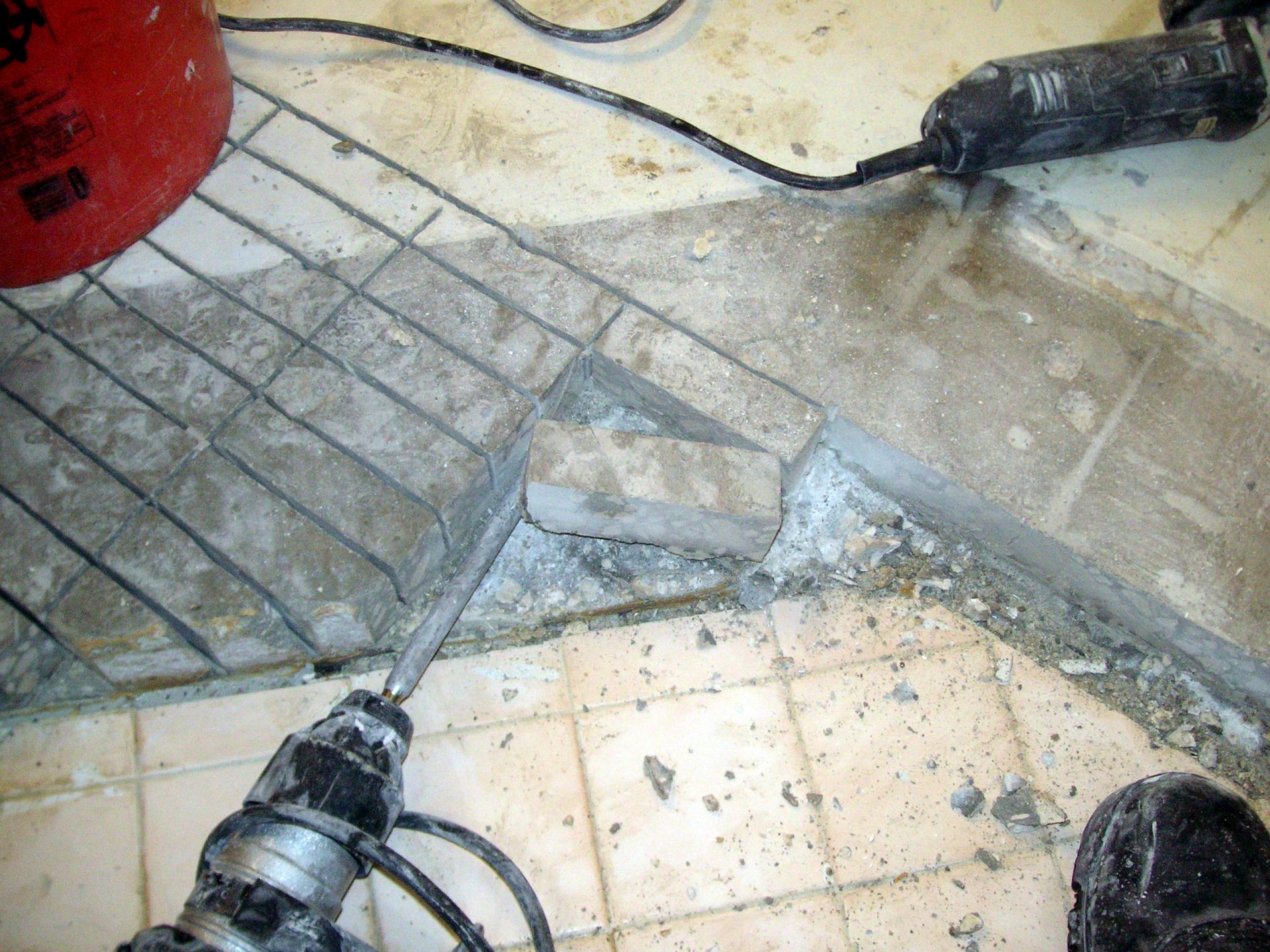

I cleaned up the edge where a partition wall will go, and now break out the rest.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_23

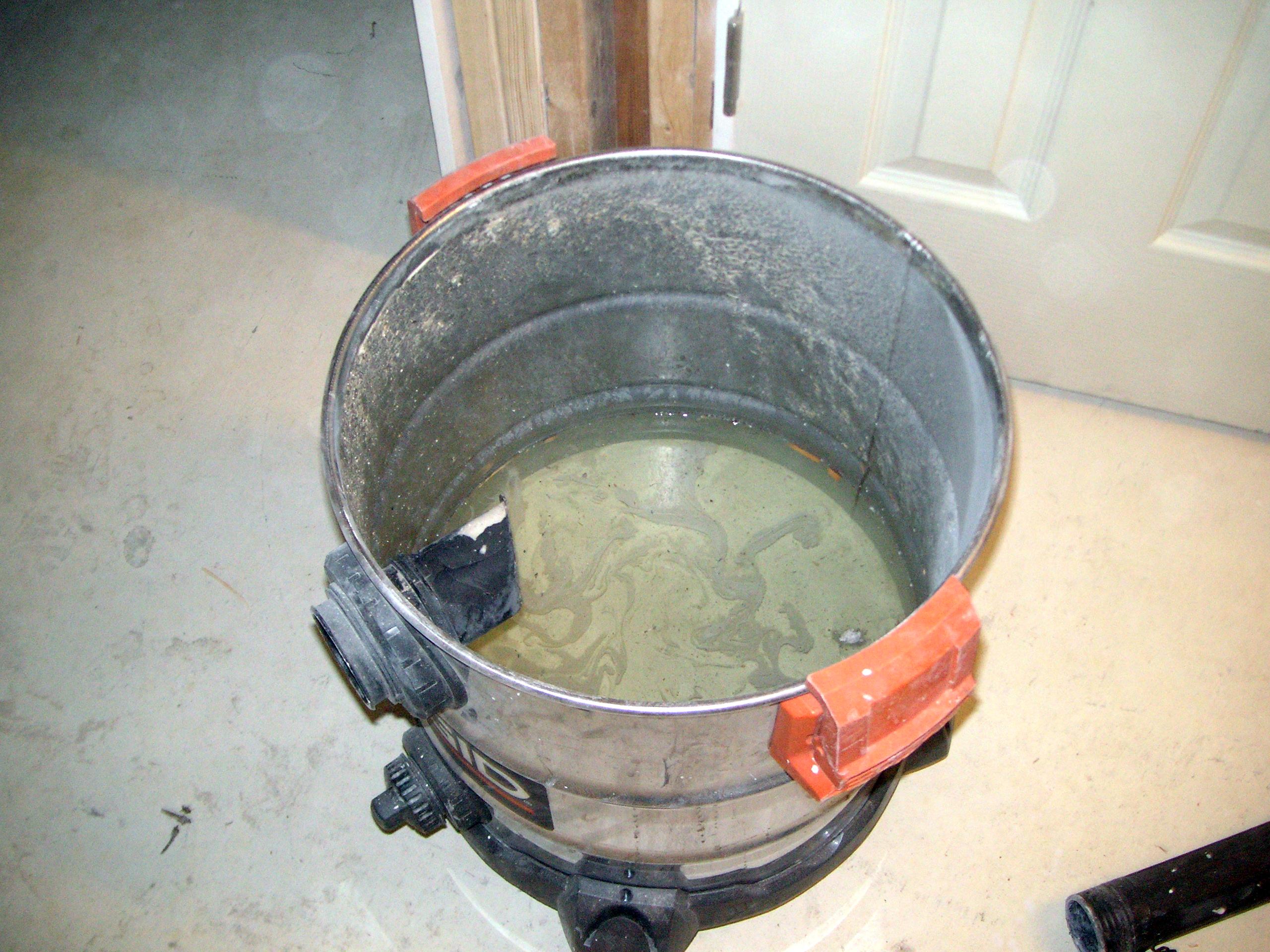

The water in the Rigid shop vac got dumped outside and cleaned with a hose.
2022-05-16_Main-bath-shower-pan_24
The chunks got put in the trash, a little at a time so as to not trip the weight alarm.
2022-05-16_Main-bath-shower-pan_25

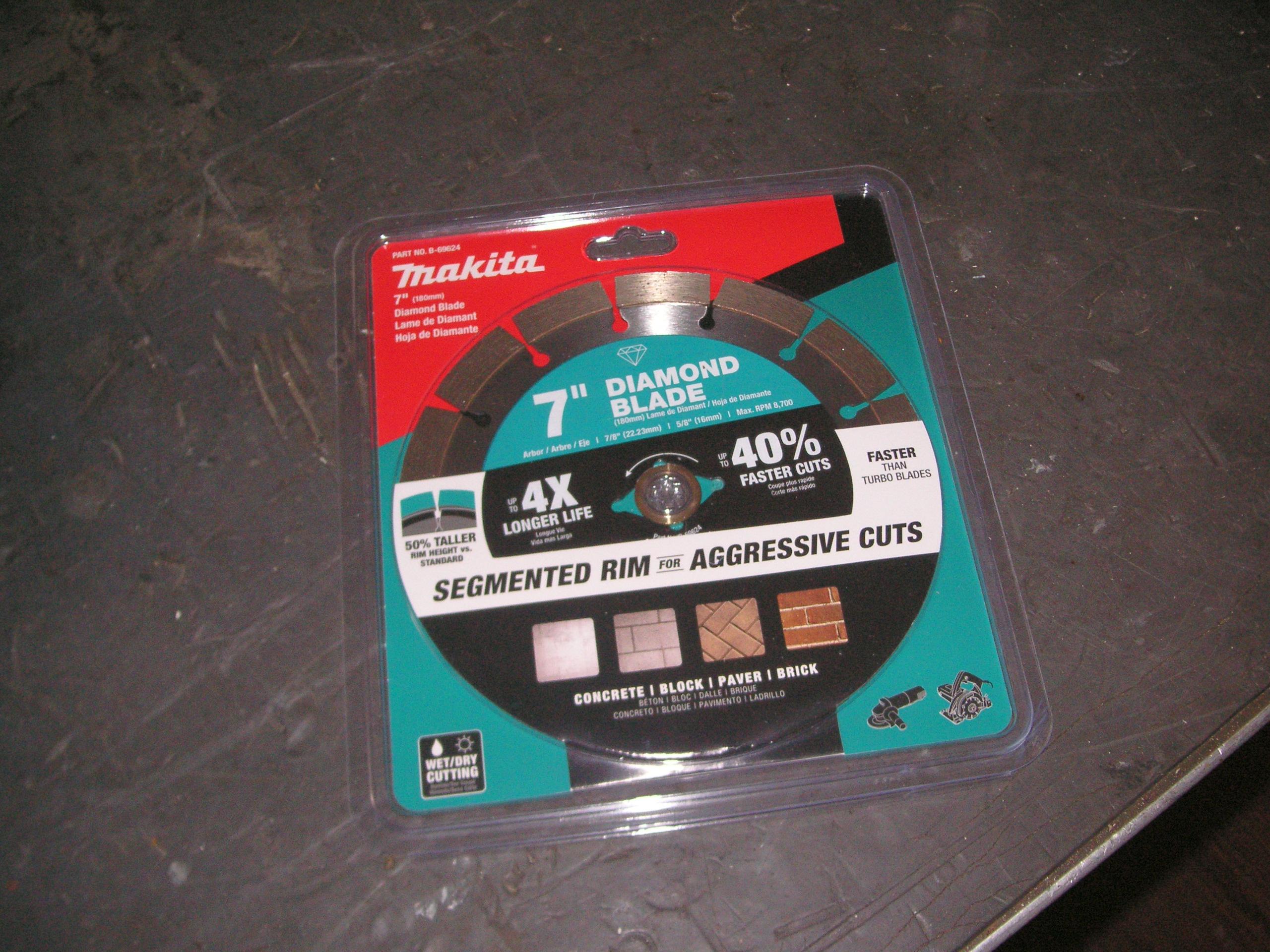

The good Makita diamond saw blade came, and will be used to uncover the trap and drain.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_26

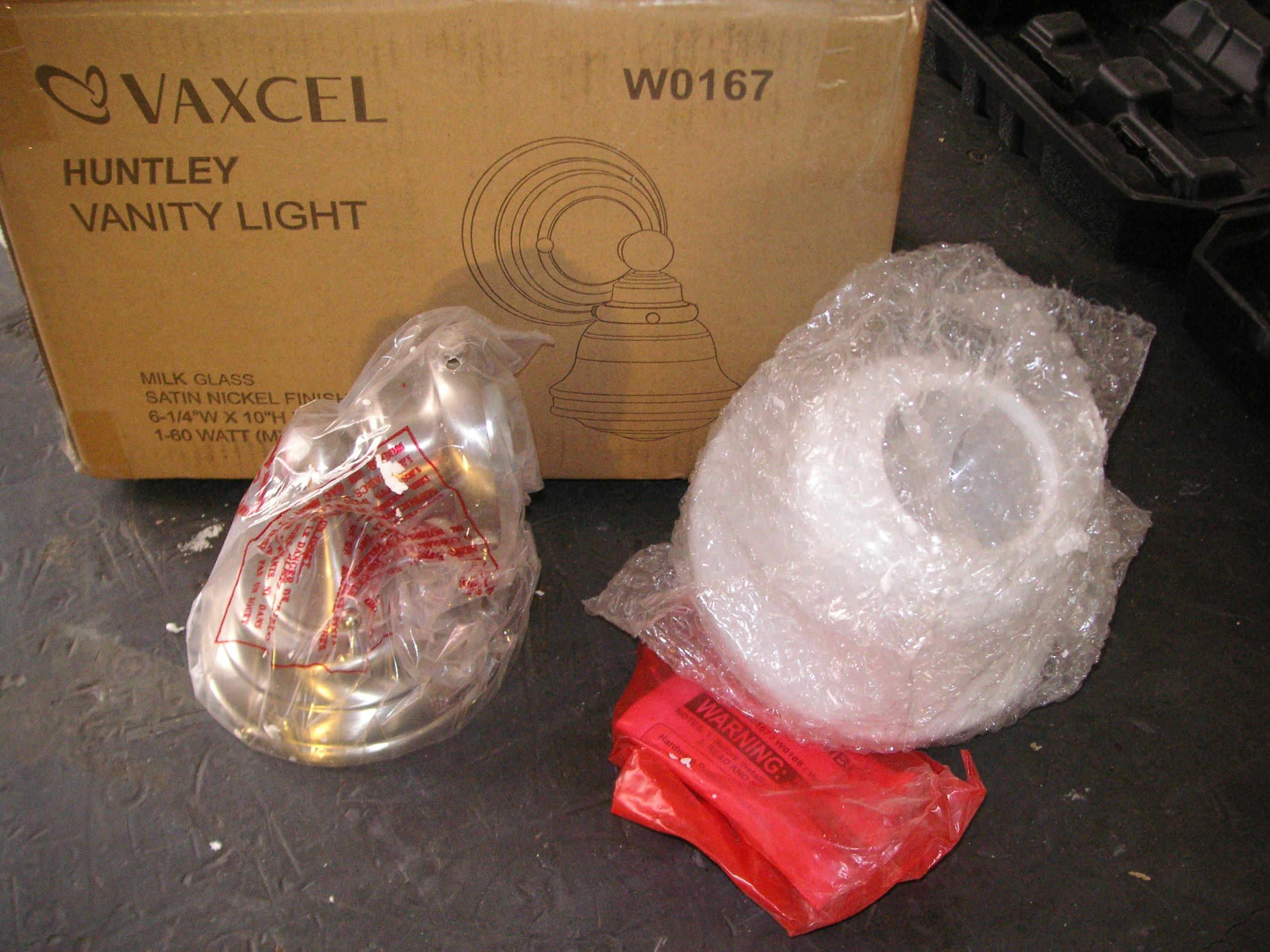

The $94 sconce I will mount by the shower stall arrived. It matches the vanity lamps.
2022-05-16_Main-bath-shower-pan_27

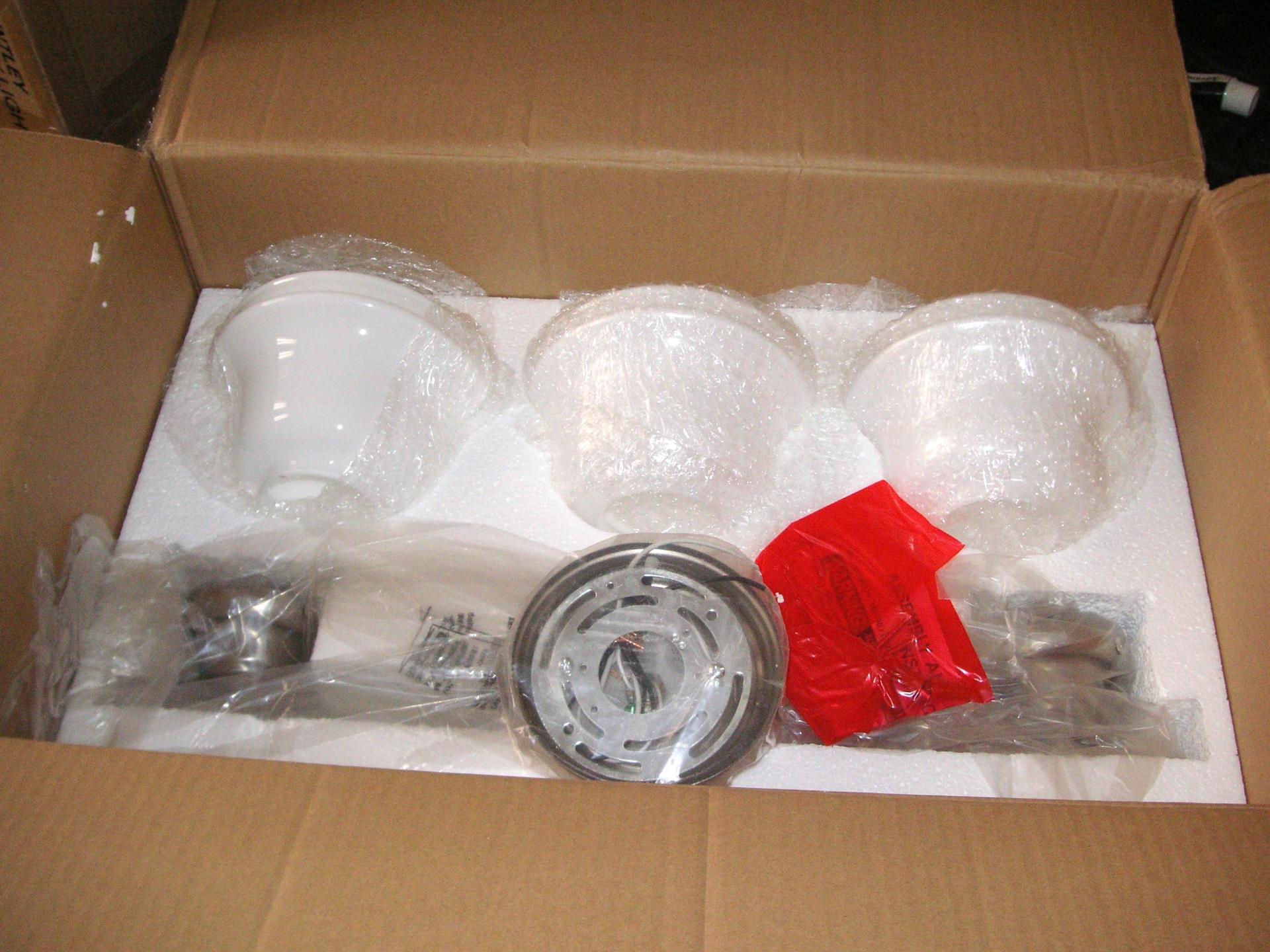

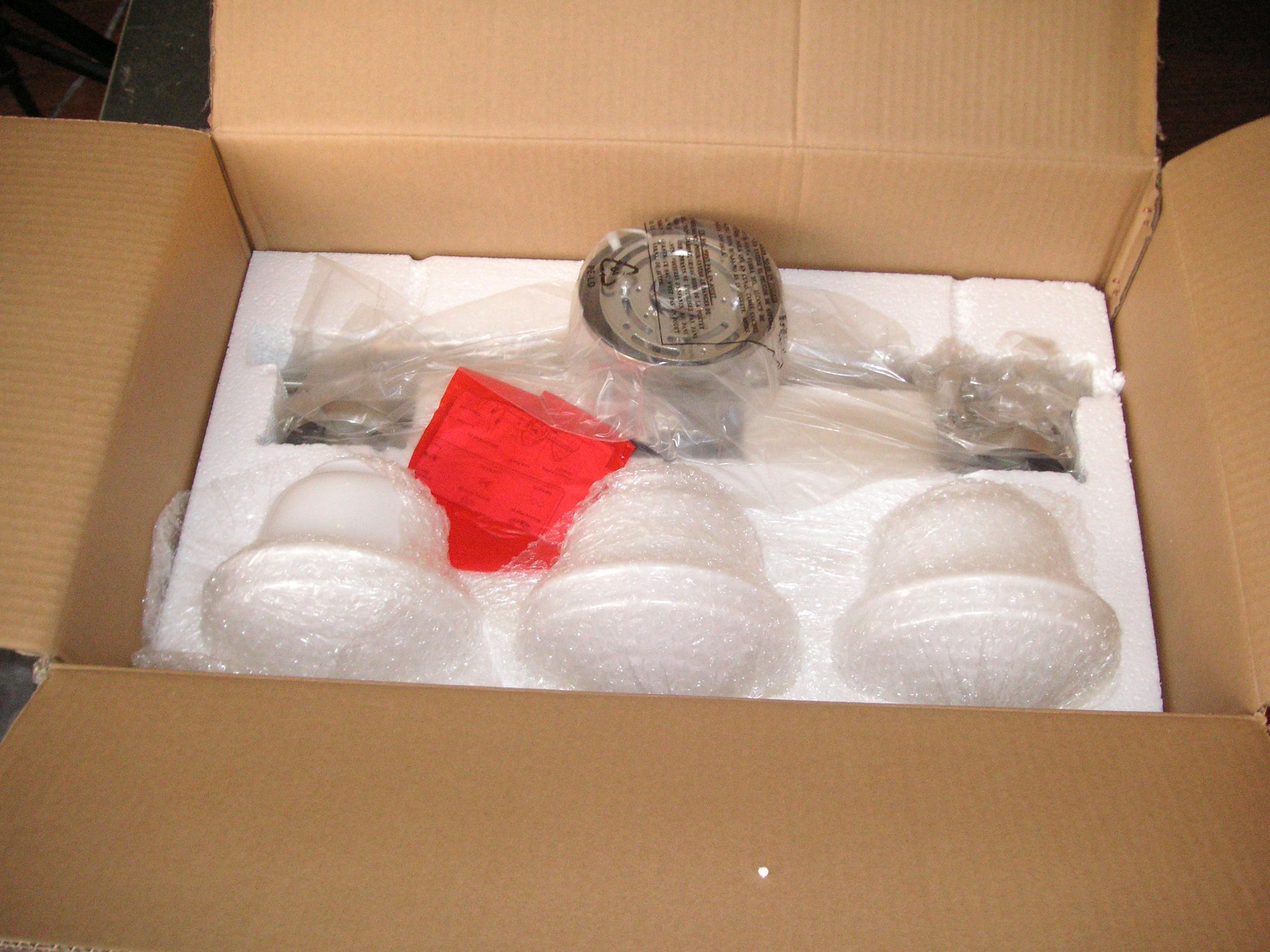

I bought two $235 vanity lamps to mount over each medicine cabinet and sink in the vanity.
2022-05-16_Main-bath-shower-pan_28
I open the second one as well, to make sure nothing is broken. It might be months more.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_29

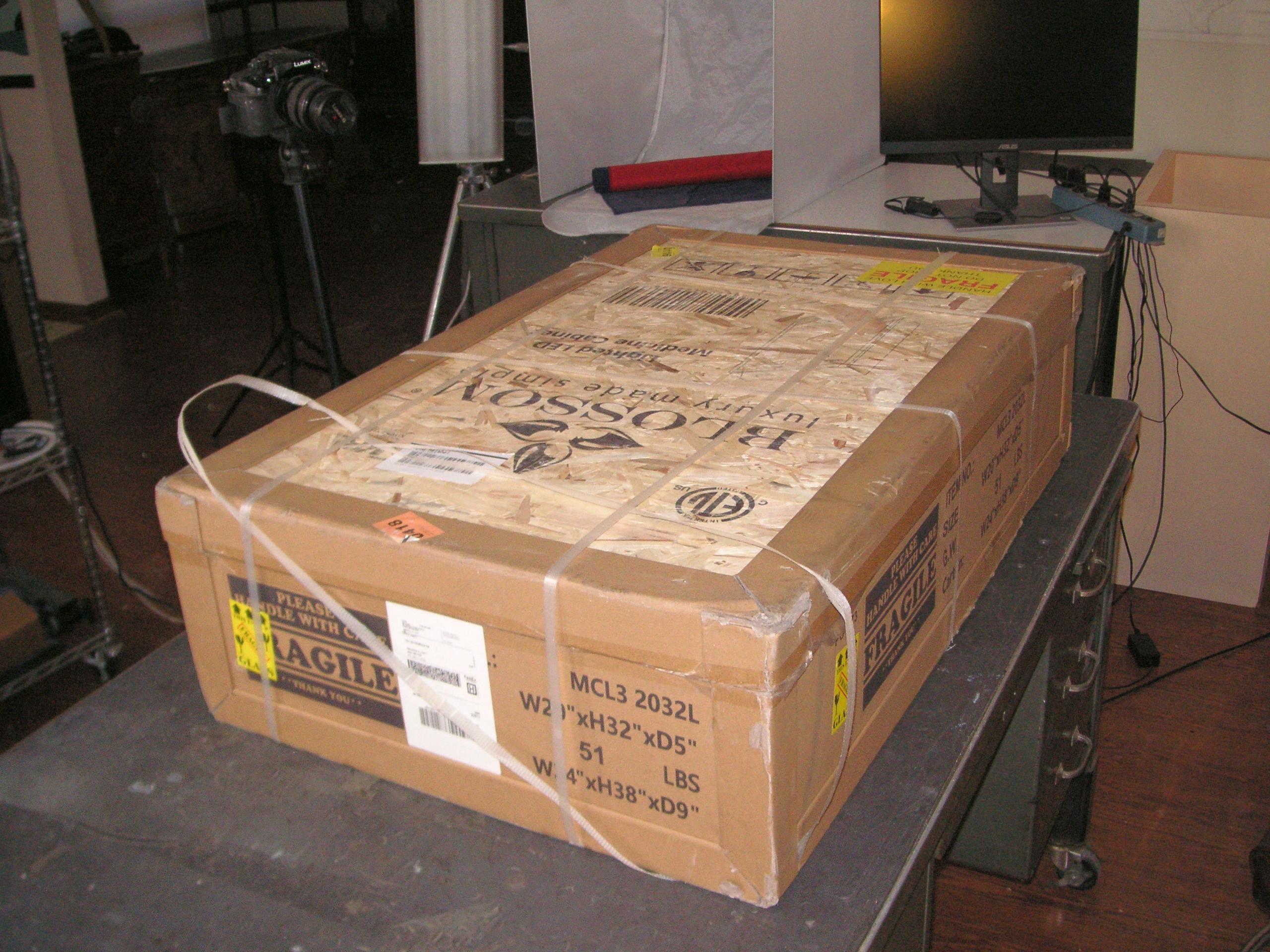

The $750 LED medicine cabinets came, packed like nitroglycerine. This is nice stuff.
2022-05-16_Main-bath-shower-pan_30

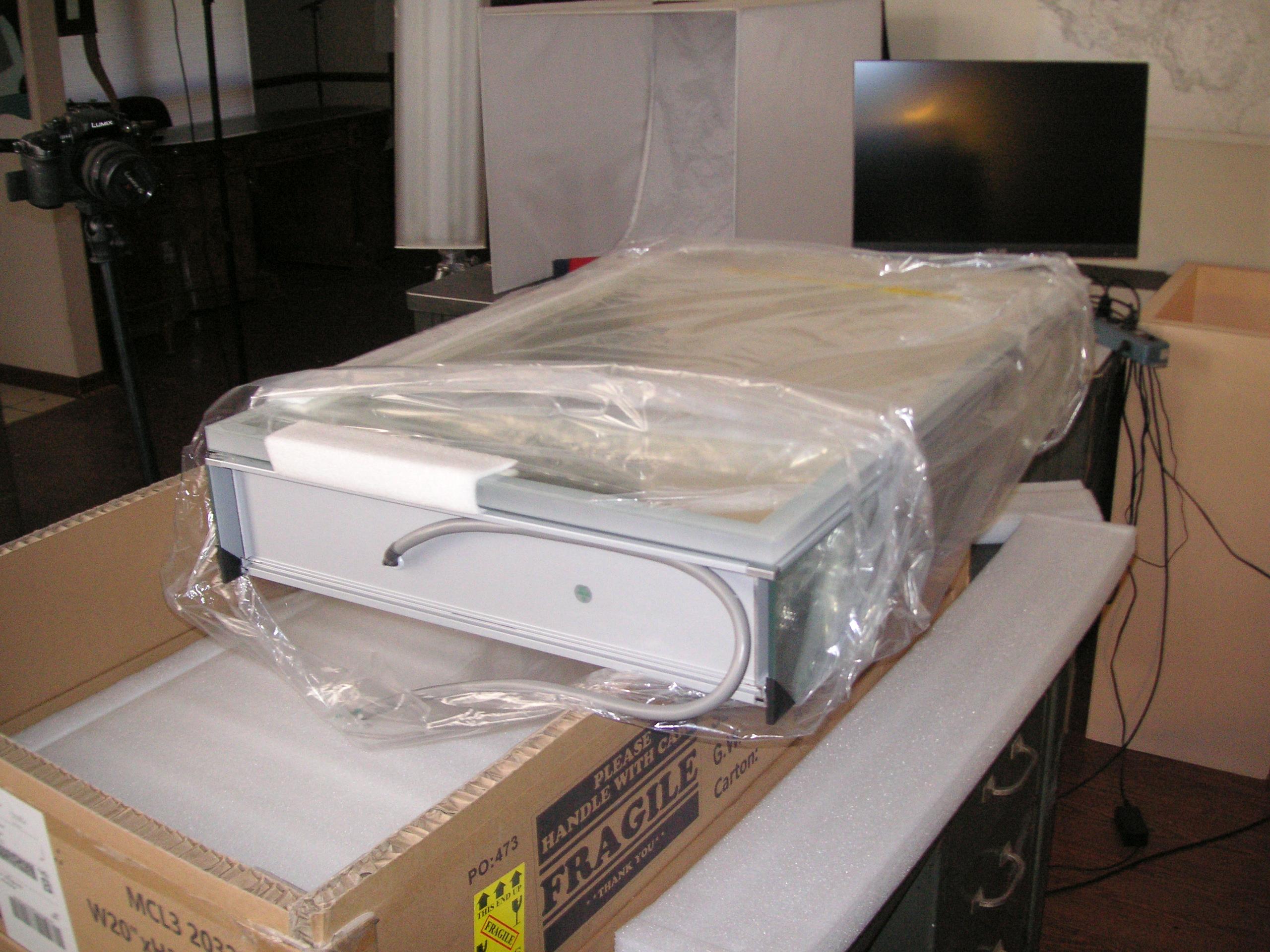

I open it up and no damage. I got a right-hinge and a left hinge to give symmetry to the vanity.
2022-05-16_Main-bath-shower-pan_31

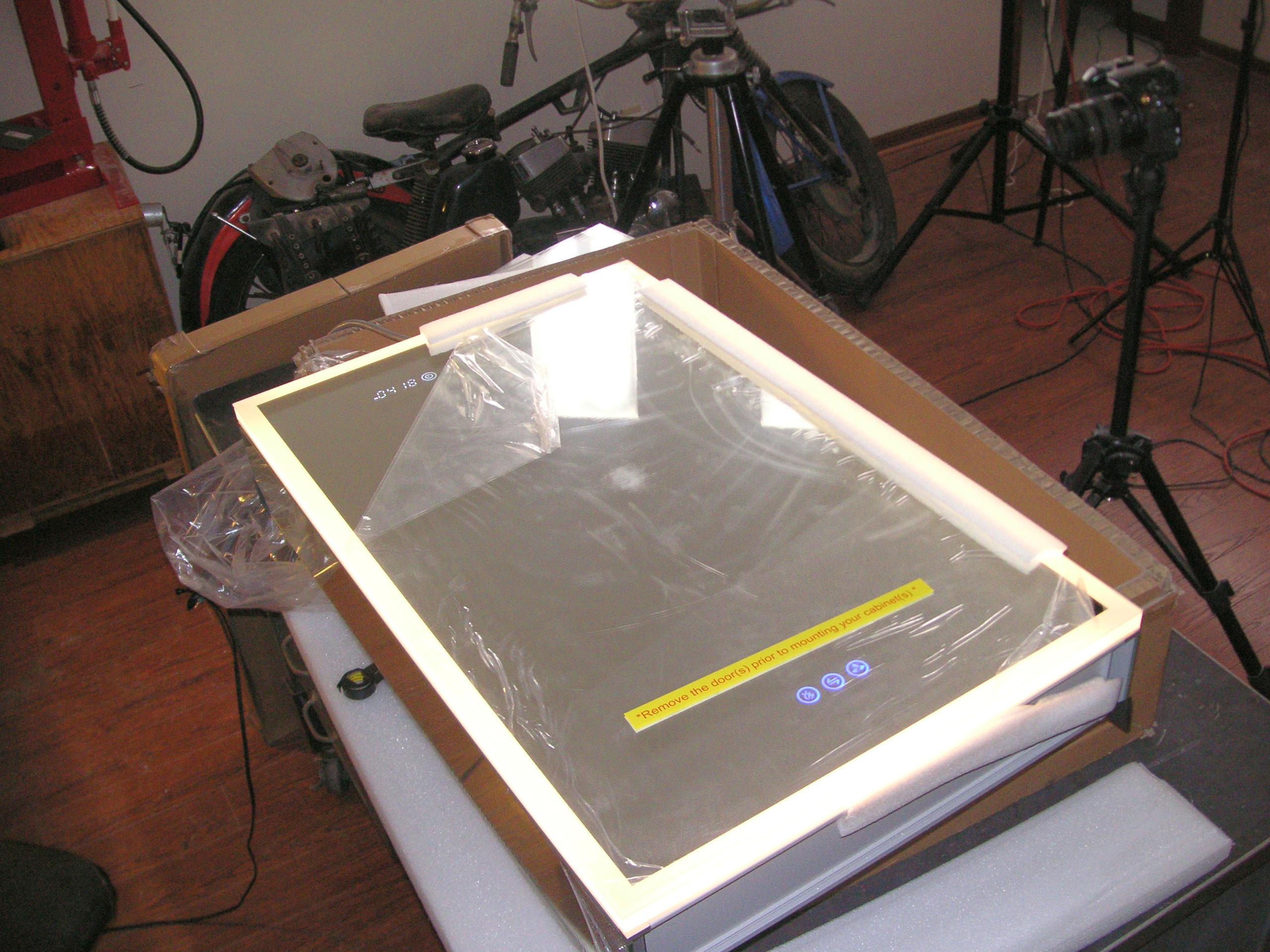

I wired up the medicine cabinet to make sure everything worked, the light, defogger, & clock.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_32
After putting the precise shower pan dimensions into CAD, I needed to widen it.
2022-05-16_Main-bath-shower-pan_33

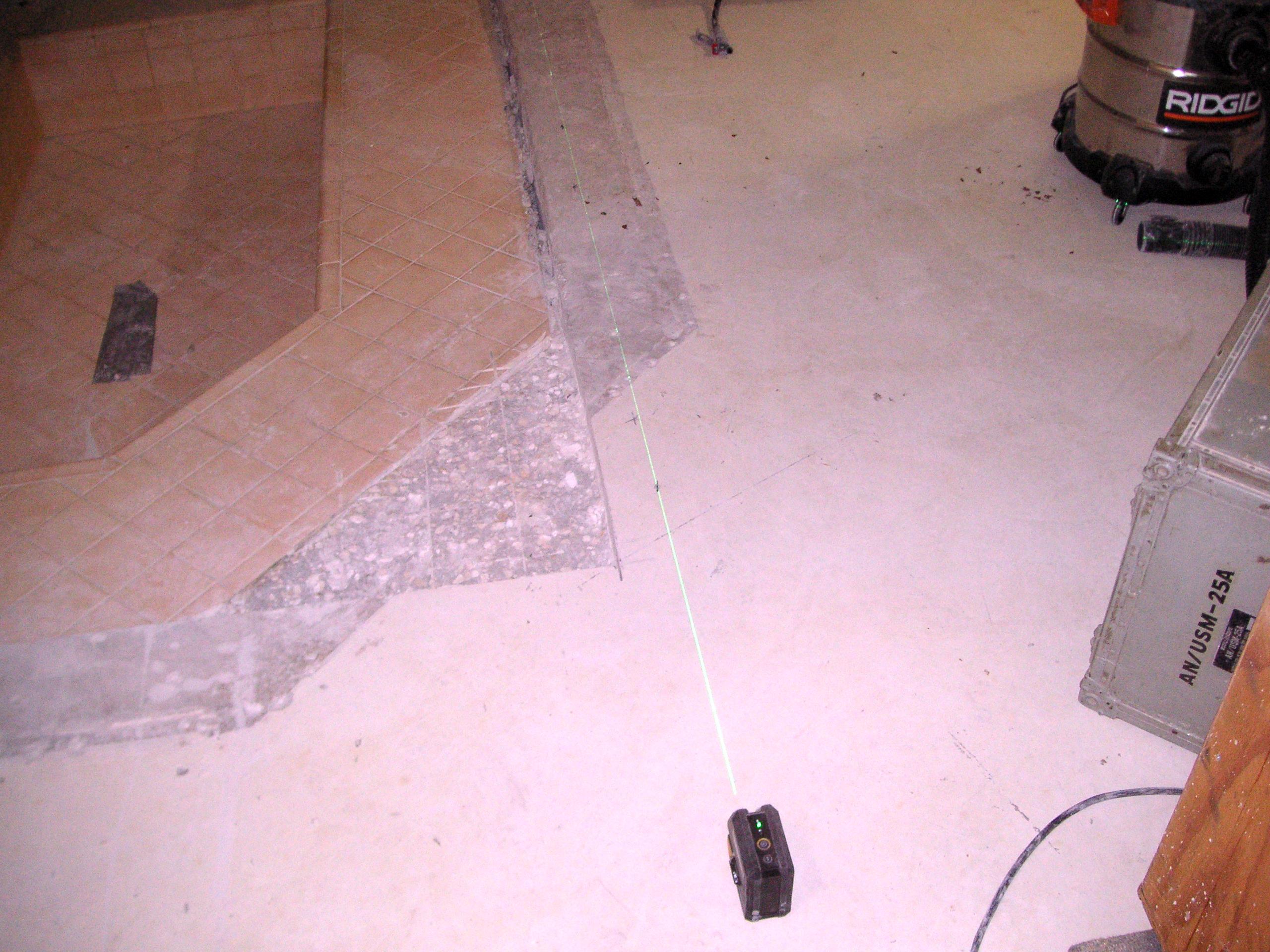

The laser is straighter than the exterior wall. I copy over it with red marker.
2022-05-16_Main-bath-shower-pan_34

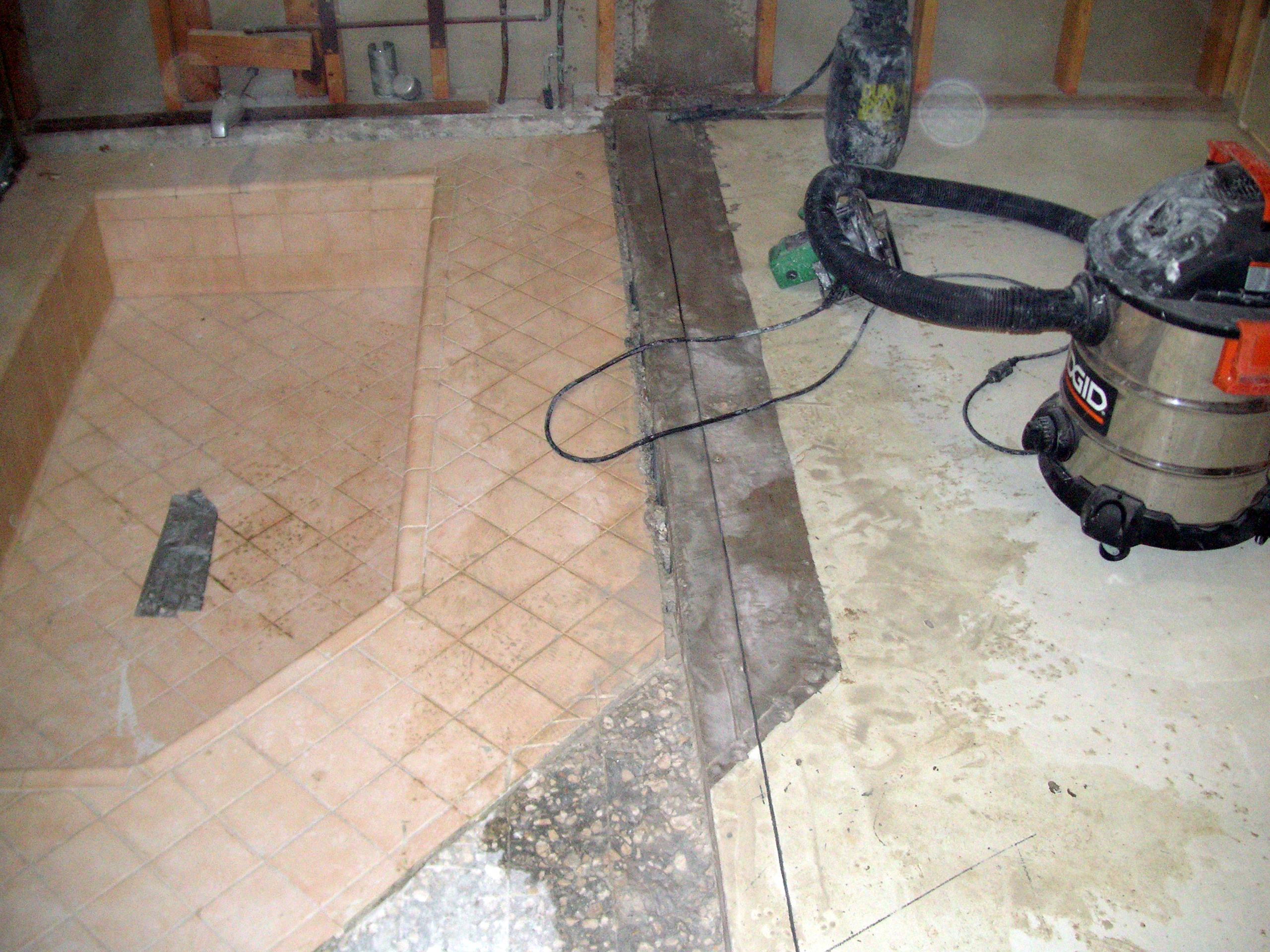

The Dewalt blade is getting dull, but I get the cut made pretty well.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_35

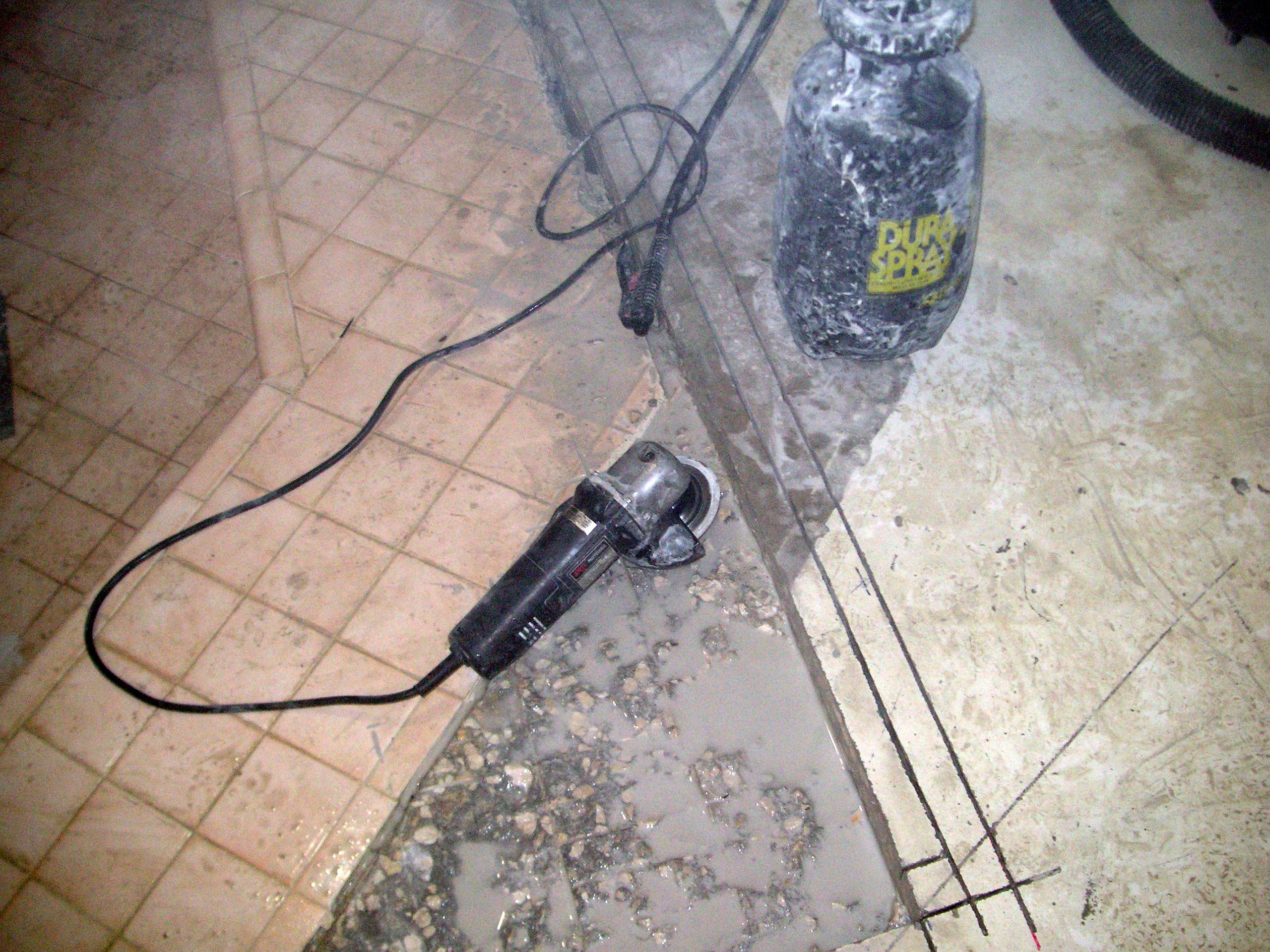

I run another cut, then use the 4-inch blade to undercut where I could.
2022-05-16_Main-bath-shower-pan_36

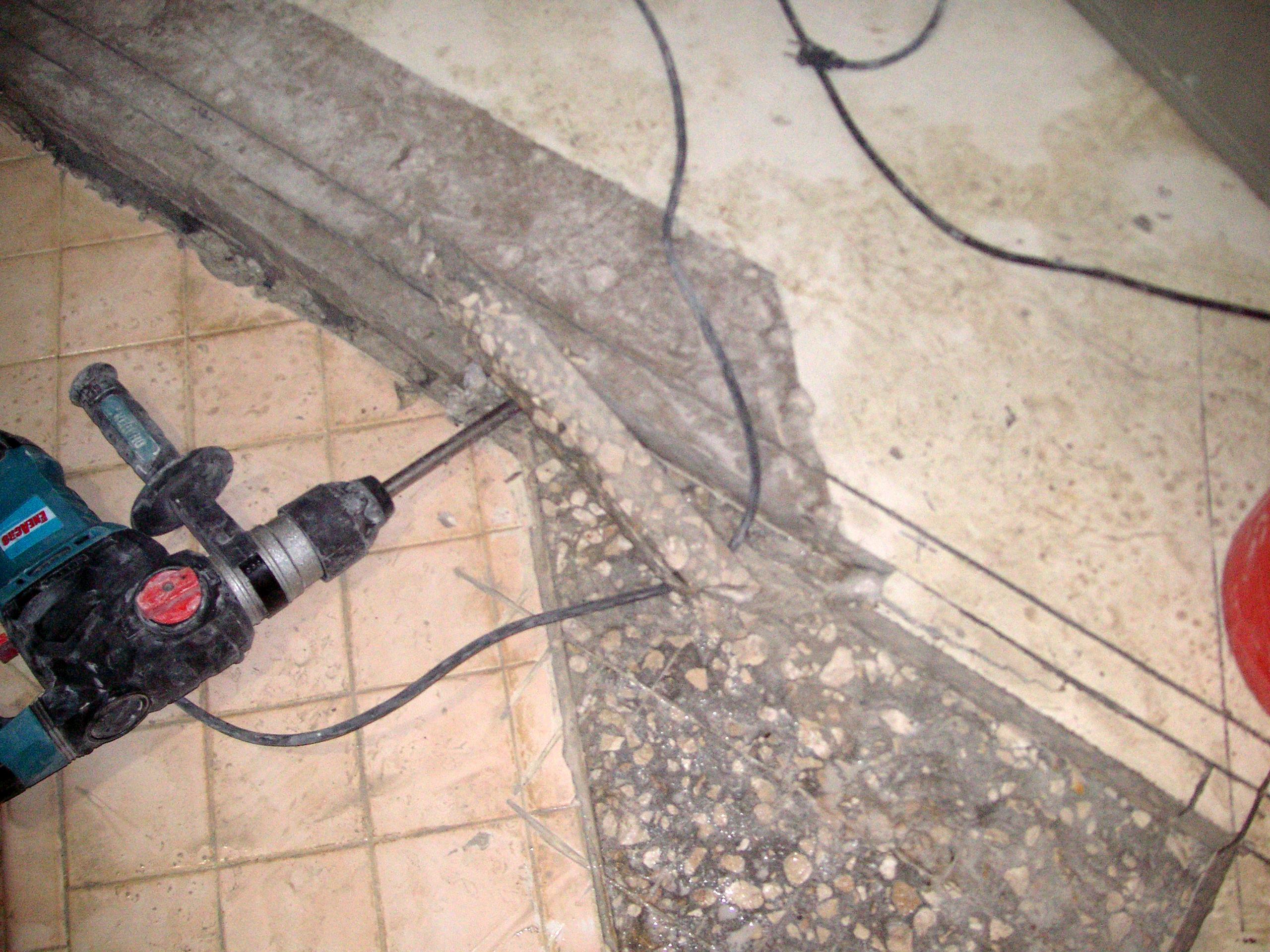

The rotary hammer makes quick work of this as well. The niches will fit the bigger pan better.
2022-05-16_Main-bath-shower-pan_37

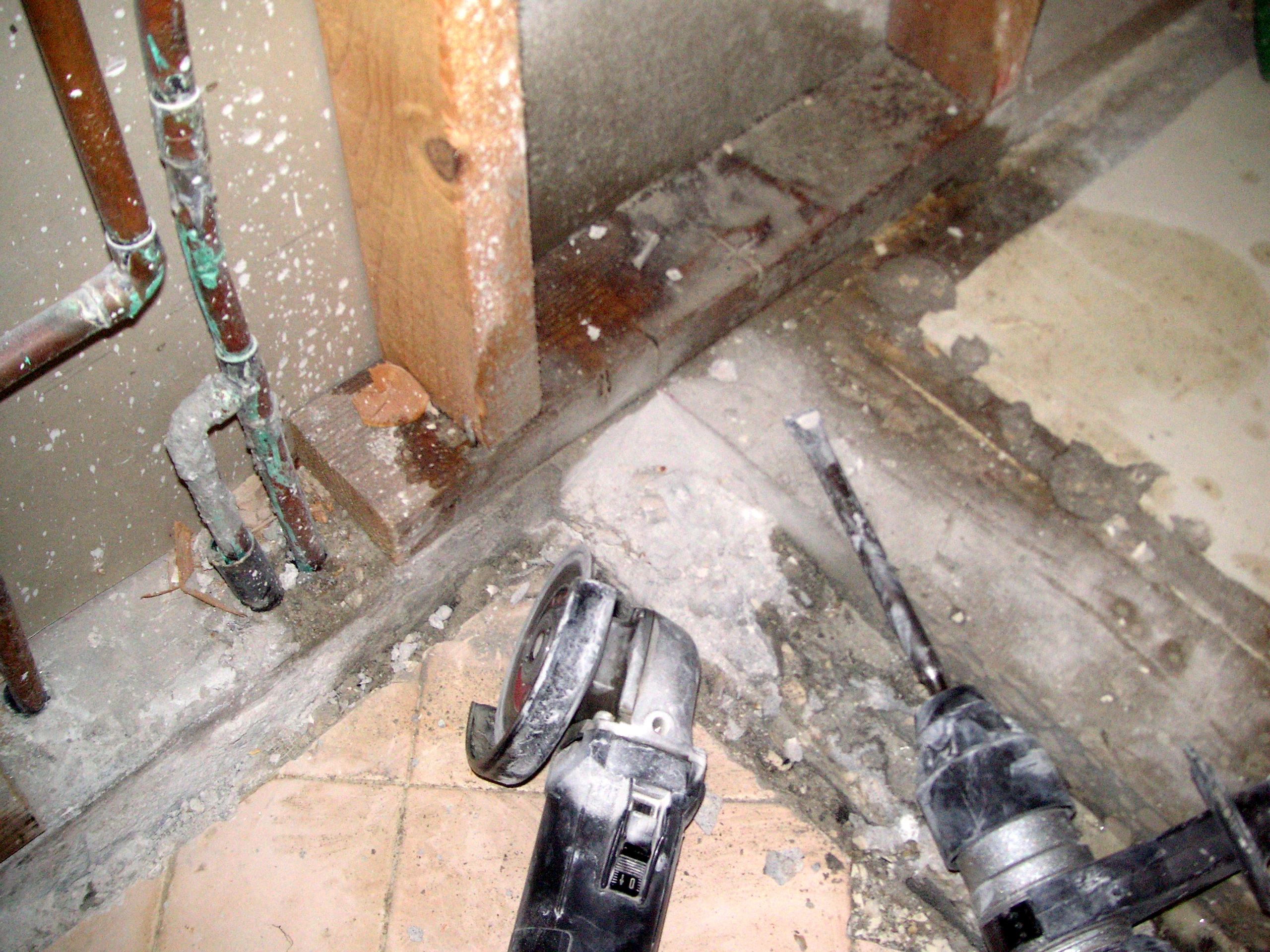

This corner was harder, but with the 4-inch diamond blade and chisel, it got done.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_38

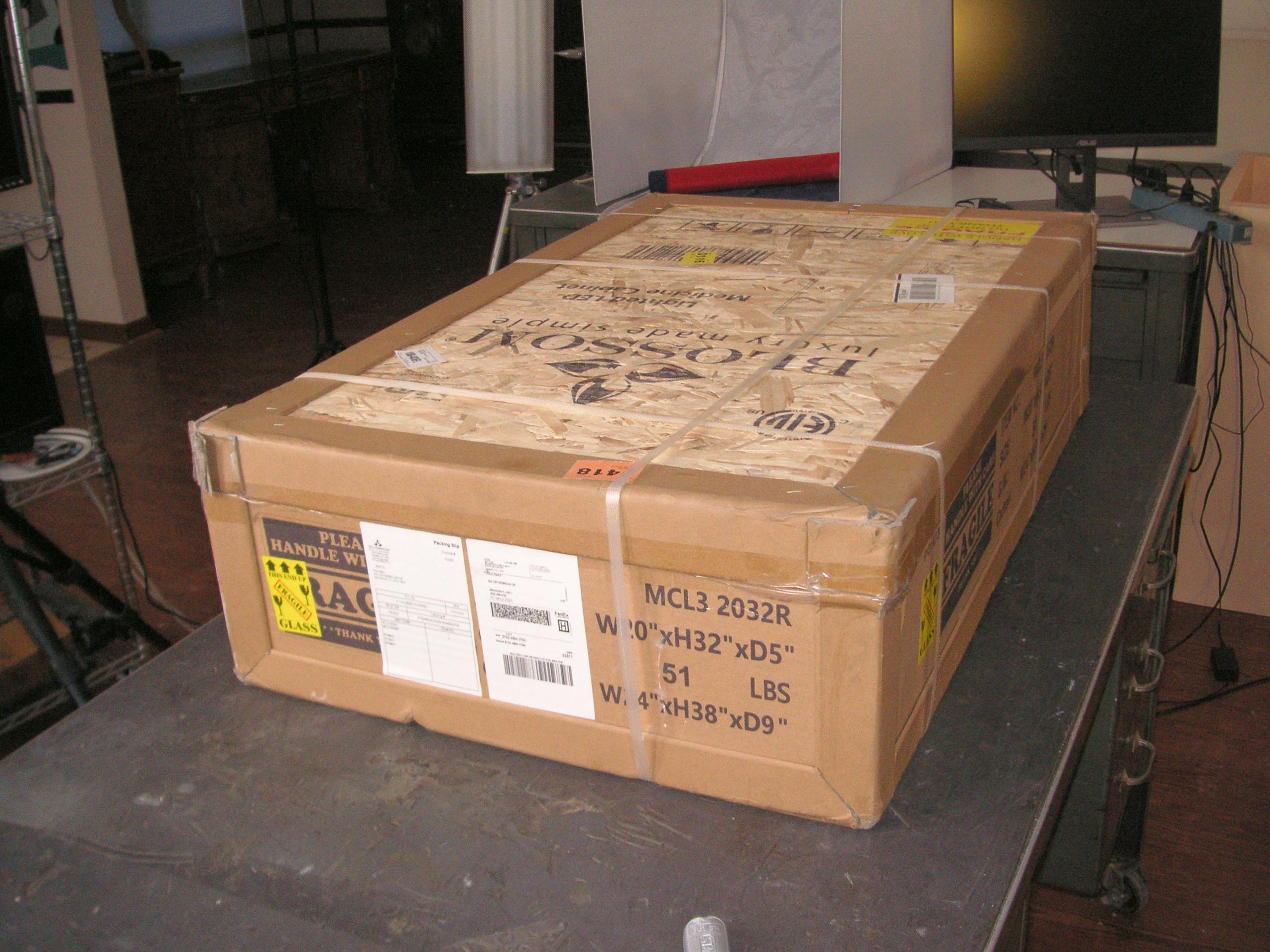

After burning in the first medicine cabinet, I get the second one on the desk to check out.
2022-05-16_Main-bath-shower-pan_39

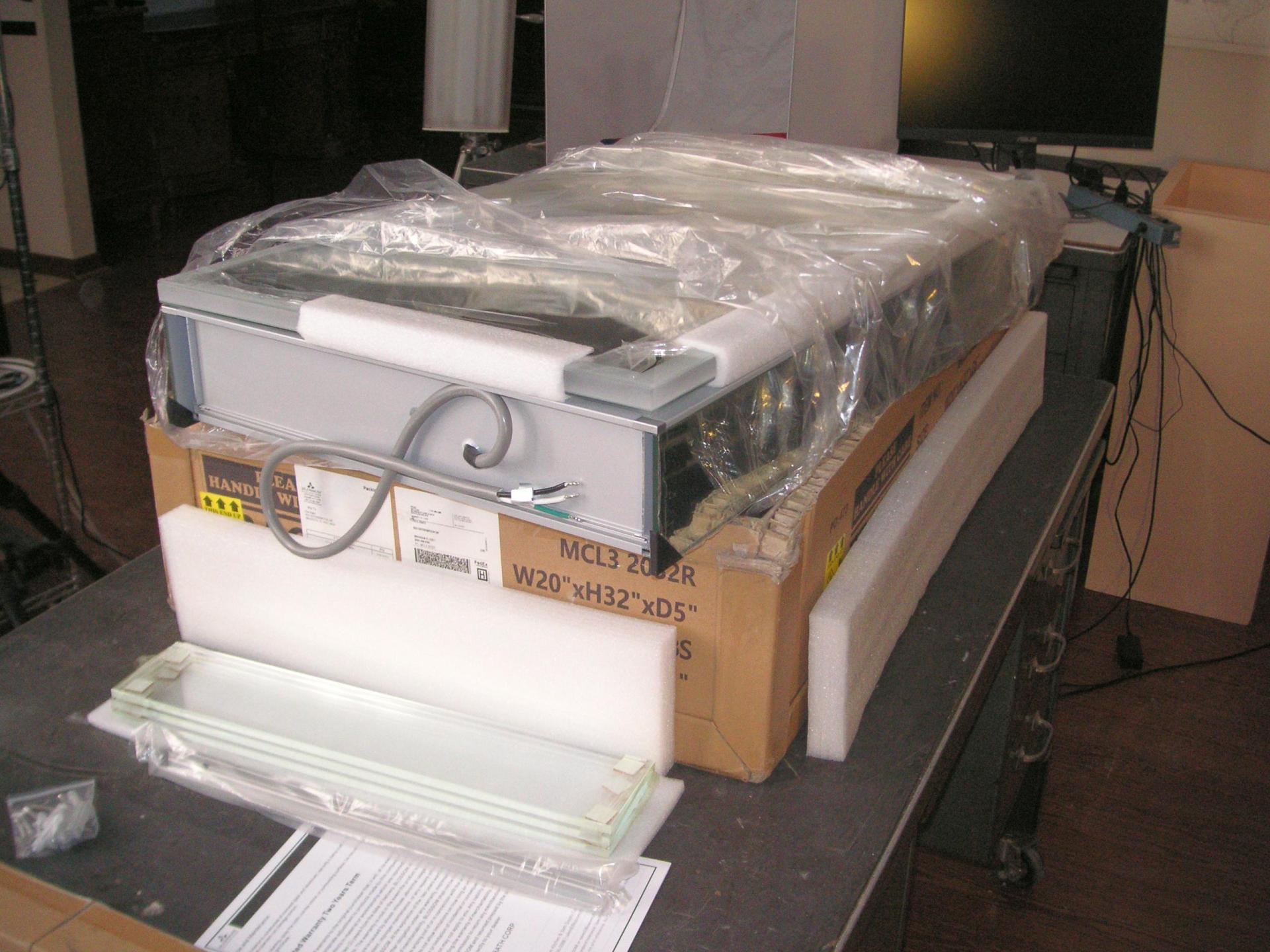

It unpacks nicely and will be packed up again until it is ready to be installed.
2022-05-16_Main-bath-shower-pan_40

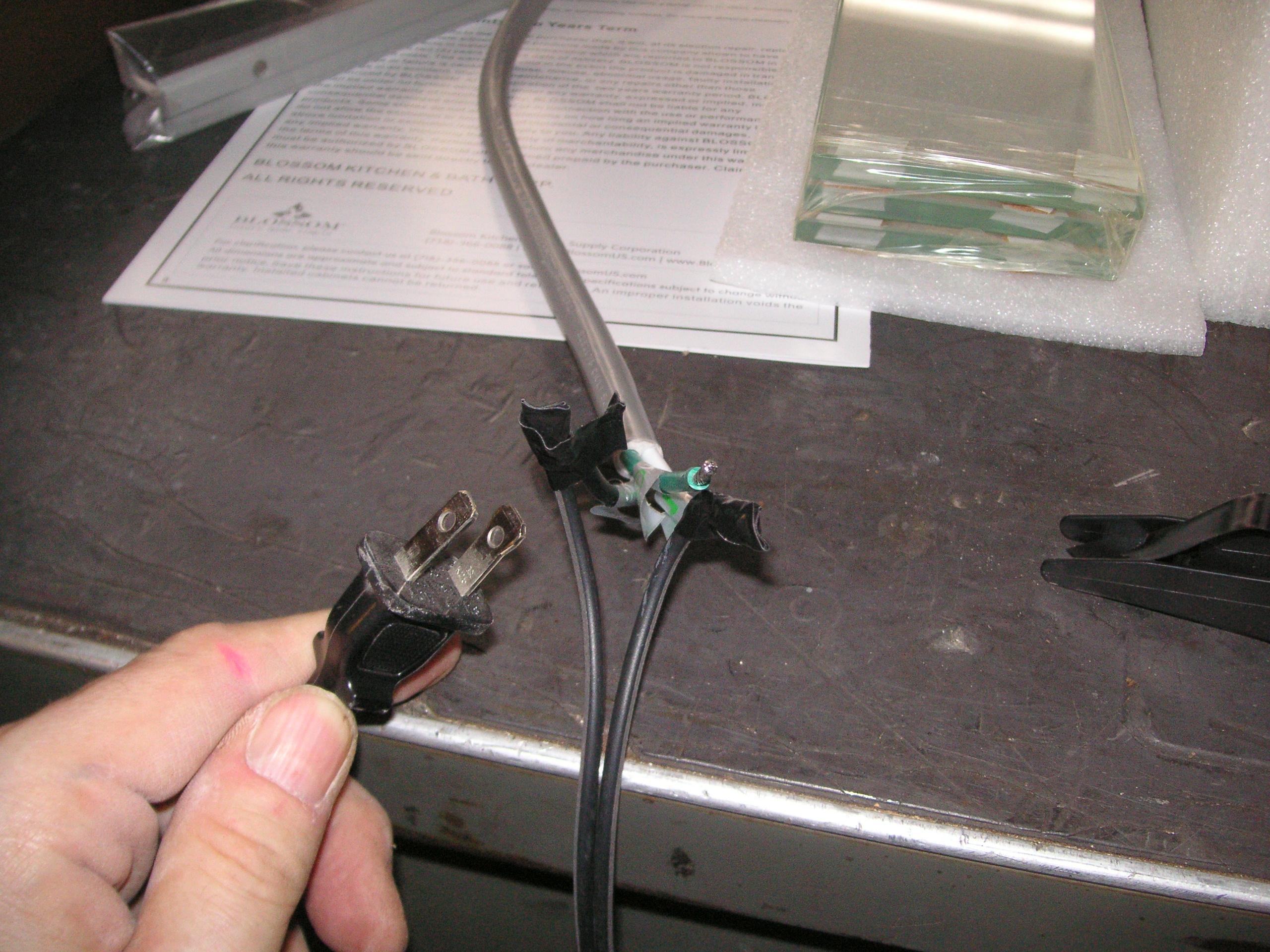

First I hack in the electrical cord to test the functions.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_41

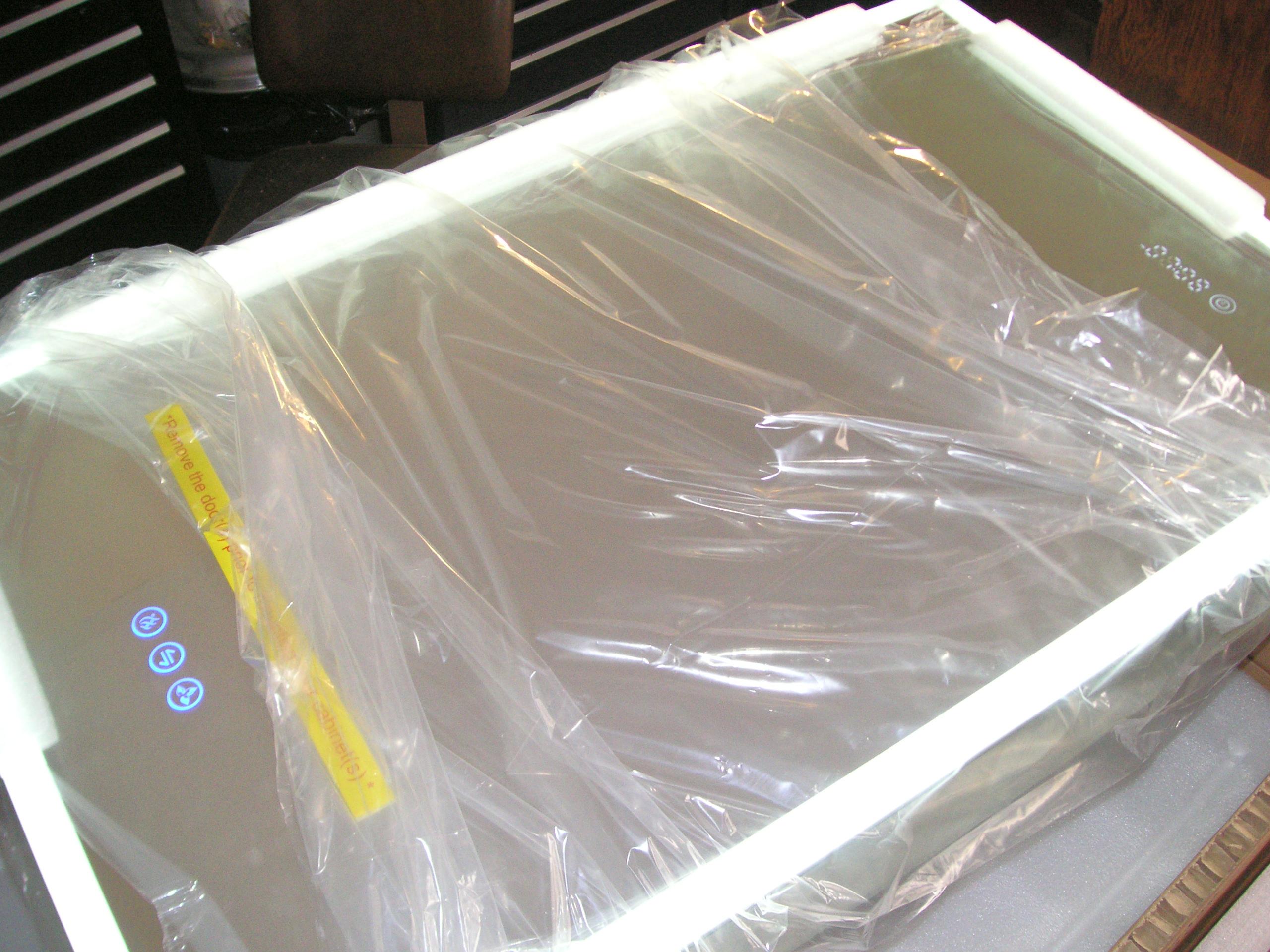

This one works fine as well. No damage and all the electronics works right.
2022-05-16_Main-bath-shower-pan_42

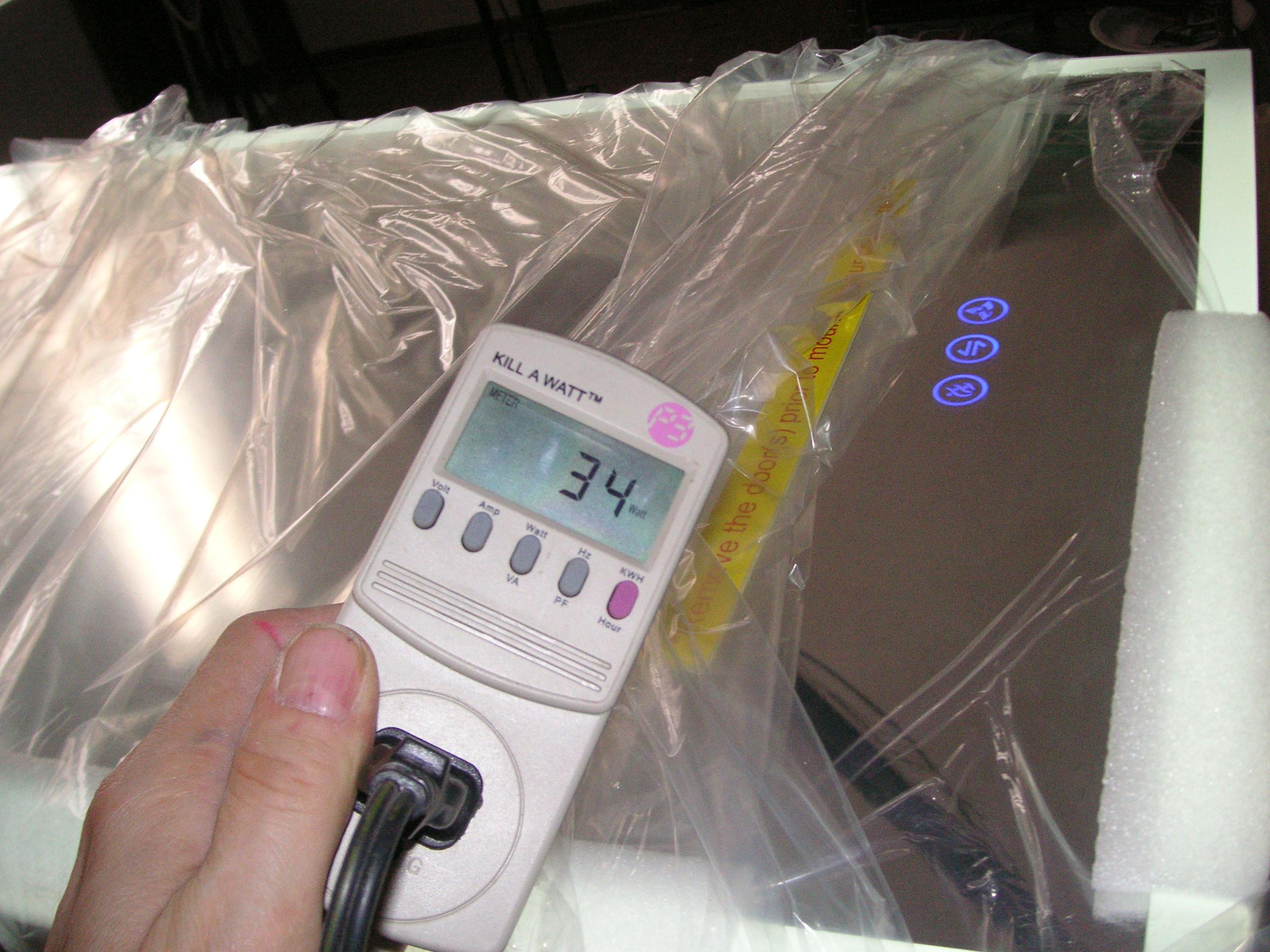

It draws 34 watts with lights and defogger on.
2022-05-16_Main-bath-shower-pan_43

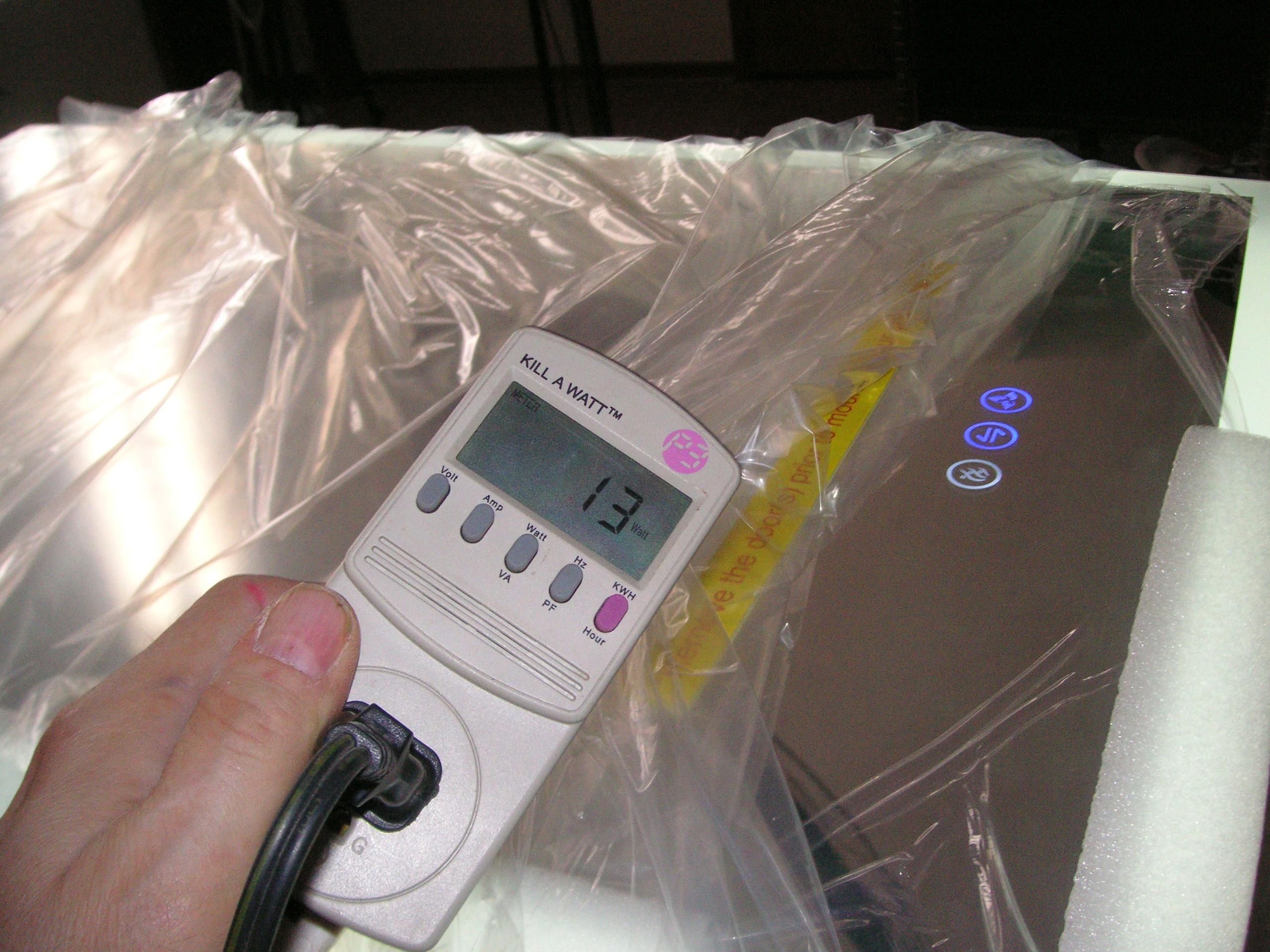

It draws 13 Watts with just the LED lights. I think I had them at max brightness. The LEDs are bright, but still need a separate lamp above.
move up a little to the right move down to the left
2022-05-16_Main-bath-shower-pan_44

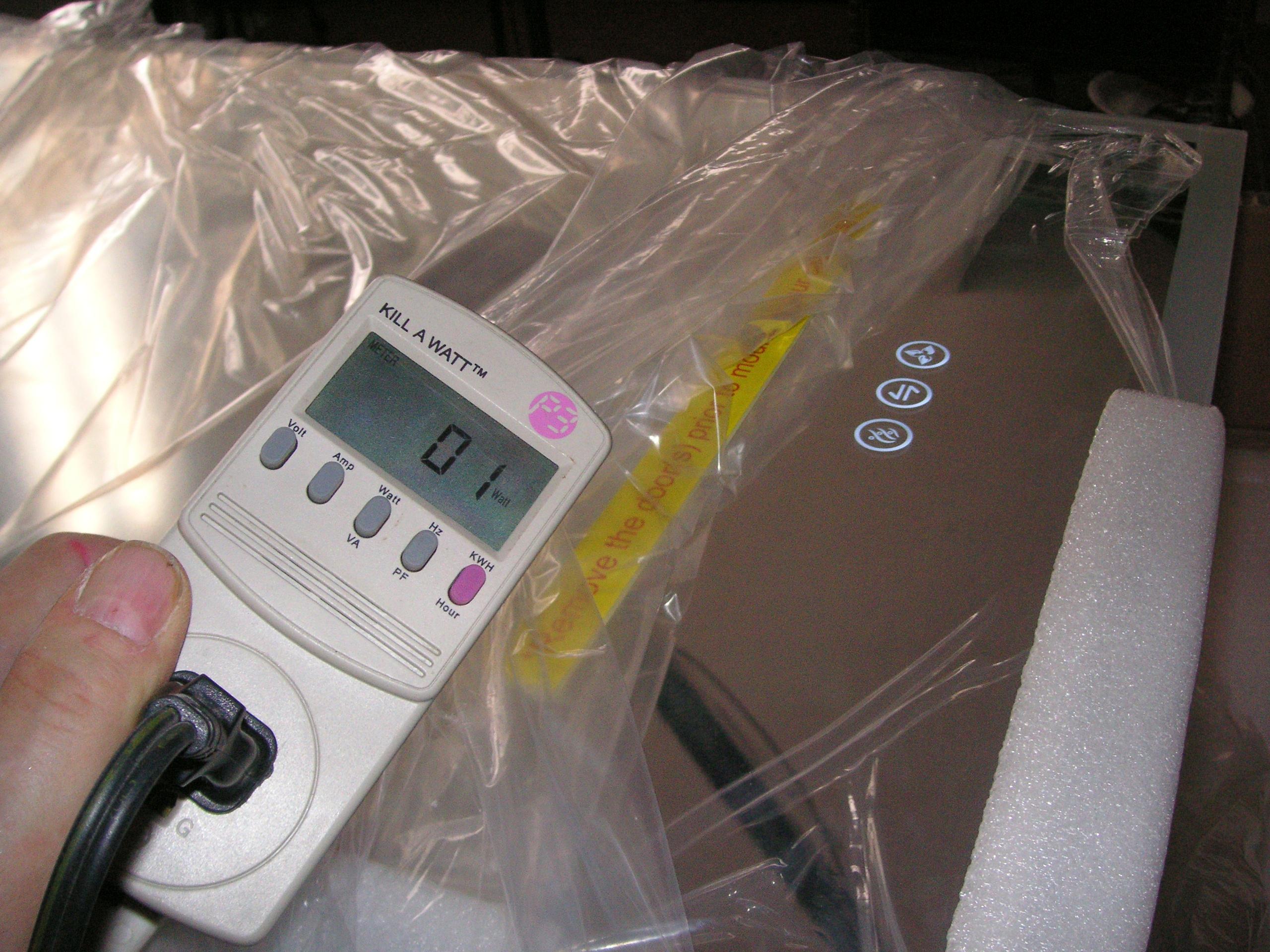

The medicine cabinet has 1 Watt of vampire power when it is in standby mode.

The bathroom design went through a lot of change while I waited for the pandemic to pass. I was going to put in a tub, but that would be a drain nightmare, needing added venting for the tub trap and the new shower trap. Then I realized I could build a dual shower and just use the existing trap with a longer drain.

I used to think a Wediboard shower pan would be cool. I was going to pay over $1000 for a Primo 5' x 5' pan, next to that bathtub. After watching YouTube videos by the Tile Coach and others, I realized it would be stupid to use a foam pan, when a mud, aka mortar-bed, pan would be far easier to build, way cheaper, and much more suited to the un-level surface I have to build it on.

Similarity, I thought Wediboard panels would be cool for the walls. They are over 100 dollars each, compared to 22 bucks for 4x8 cement board. The cement board is stronger, and can support the heavy 2' x 4' tiles I plan to install. I figure to use moisture barrier membrane covered by Ardex 8+9 waterproofing. Belt and suspenders, if you will. With the shower pan defined, I can next build the partition wall around the toilet. Stay tuned.
