Regulator Bracket
`
`
`
`
`
`
`

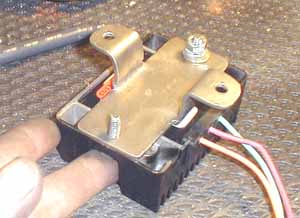

Time to mount up the regulator.  I used 1/4-20 bolts with a flat washer and nice new lockwashers so they stay put.  Replace the lockwashers every time you take something apart.  They cost less then a penny.  I worked at a military contractor and saw the chart for how good lockwashers still work after repeated tightening.  After about 5 times they are useless.  A new one every time, even if you have to loosten something 20 seconds after you tightened it.

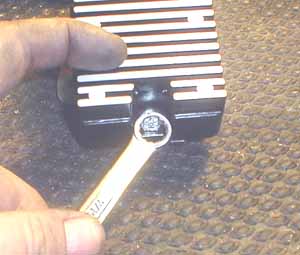

The Custom Chrome people assume you own a 7/16 socket because they did not provide clearance for a wrench.  Same for Frank's and accel and everybody else.  Would it kill then to make the cutout an 1/8 inch bigger?

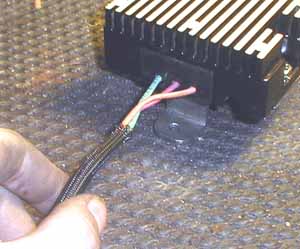

I made the bracket so wino I got a little guilty so I am making a little harness to pretty up the wires coming off the regulator.  I push the nylon braid over the 3 wires....
